About this product
A single-groove SPB profile V-belt pulley with an outside diameter of 287 mm and a pitch diameter of 280 mm, supplied as one unit. The pulley features a 20 mm bore diameter (expandable to a maximum of 48 mm), an 80 mm hub diameter, and a 49 mm hub width. The working width is 25 mm, accommodating a 17 mm belt width. Constructed from cast iron with internal spokes, the pulley is rated for a maximum speed of 30 m/s and is suitable for use in construction machines, forestry machinery, agricultural machinery, and mechanical engineering applications. The hub bore, keyway, and tapped hole are optional features. The pulley weighs approximately 7.5 kg and measures 305 mm in length, 300 mm in width, and 65 mm in height.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Bore diameter | 20 mm |
| BWorking width | 25 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| dMax. bore diameter | 48 mm |
| Hub diameter | 80 mm |
| LHub width | 49 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 287 mm |
| PPitch diameter | 280 mm |

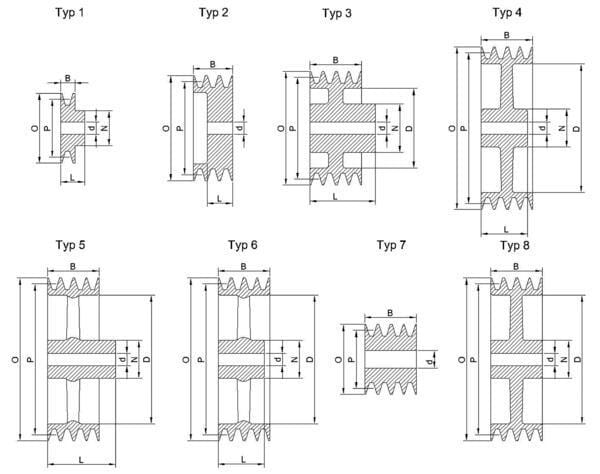

| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7540 g |
| Dimensions | 305 × 300 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000189260
Kramp Oil seal 85x120x12mm type:CC DIN 3760 1x 8511012CCP001
£3.41 excl.
£4.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000322278
Kramp Bearing NWB09670
£61.00 excl.
£73.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000067177
Kramp Cultivator point 215x40x20mm, hardened, curved, 2 hole, suitable for Unia 2111200020CN
£44.43 excl.
£53.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250312

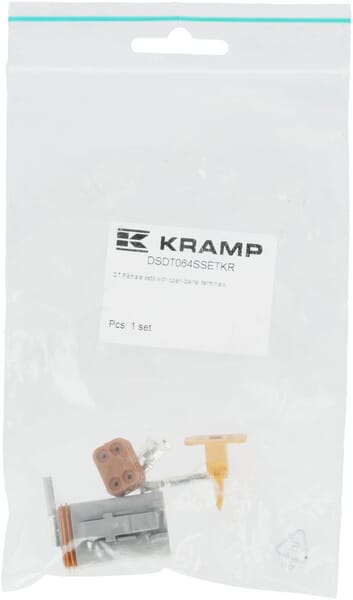

Kramp Set of DT 4 pin connectors plug female DSDT064SSETKR
£5.15 excl.
£6.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000253773

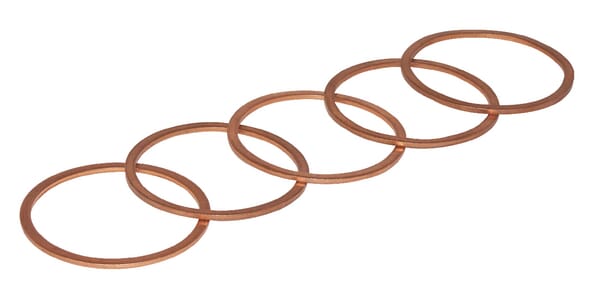

Kramp Copper washer 22x28x2mm CU222820P025
