£107.40
excl. VAT
£128.88 incl. VAT
£128.88
incl. VAT
£107.40 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Bore diameter | 20 mm |
| BWorking width | 25 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| dMax. bore diameter | 48 mm |
| Hub diameter | 80 mm |
| LHub width | 49 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 307 mm |
| PPitch diameter | 300 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 8719774921535 |
|---|---|
| Unit of measure | EA |
| Weight | 7306 g |
| Dimensions | 330 × 330 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000383078
Kramp V-belt 17x2413 Li VB172413KR
£16.53 excl.
£19.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000046918
Kramp Roll pin 9x50 mm 1481950
£0.73 excl.
£0.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000271197

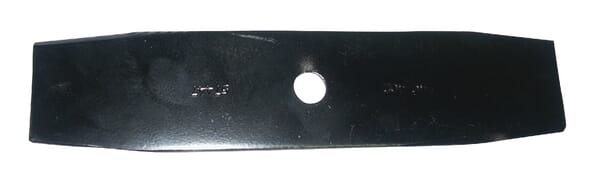

Kramp Edger blade 9"x1/2", 3.2mm thick, straight FGP012722
