£138.62
excl. VAT
£166.34 incl. VAT
£166.34
incl. VAT
£138.62 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
About this product
A single-groove V-belt pulley with a 189.6 mm outside diameter and 180 mm pitch diameter, designed for both C and SPC V-belt profiles. The pulley has a 20 mm bore with an optional keyway and tapped hole, and a 70 mm hub diameter with 50 mm hub width. Belt width is 22 mm, with a maximum working width of 34 mm. Manufactured from cast iron, the pulley is rated for a maximum speed of 30 m/s and suits construction machines, forestry machinery, agricultural machinery, and mechanical engineering applications. The unit weighs 4,419 g and can accommodate bores up to 42 mm maximum with appropriate modifications. Technical note: recommended minimum pulley diameter is 180 mm for VB22 belts and 224 mm for SPC belts.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 22 mm |
| Bore diameter | 20 mm |
| BWorking width | 34 mm |
| Contains spokes | No |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | C, SPC |
| dMax. bore diameter | 42 mm |
| Hub diameter | 70 mm |
| LHub width | 50 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 189.6 mm |
| PPitch diameter | 180 mm |

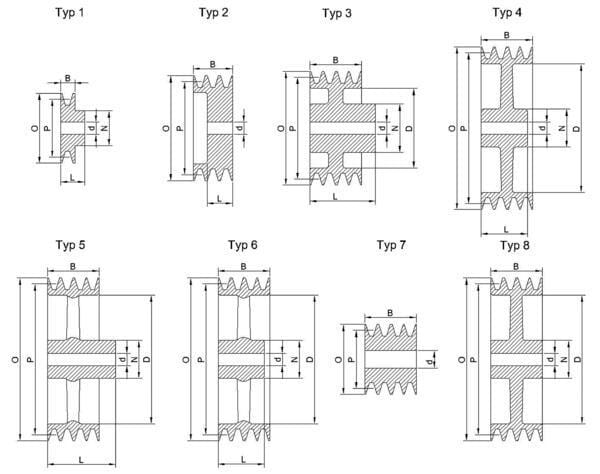

| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB22 - 180 mm, For SPC - 224 mm, For XPC - 180 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4419 g |
| Dimensions | 200 × 200 × 50 mm |
| Dangerous goods | No |
