Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 104 mm |
| PPitch diameter | 100 mm |

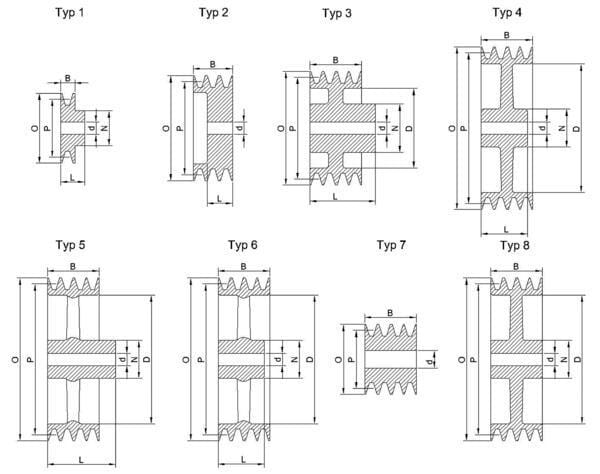

| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607037792 |
|---|---|
| Unit of measure | EA |
| Weight | 979 g |
| Dimensions | 105 × 105 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000342172
Kramp Platewheel Simplex 23 teeth 1 1/4" chain 20 B-1 PW11423
£40.90 excl.
£49.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000261321
Kramp Cylinder S/A-DIY EPL30-280, Saturn EPL30280
£88.96 excl.
£106.75 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000310806

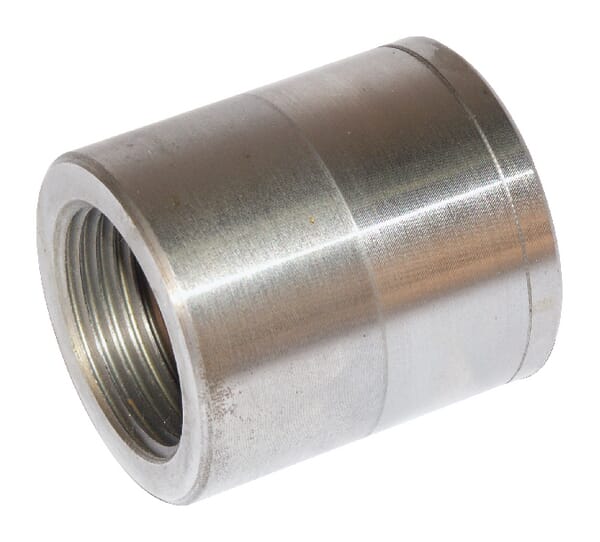

Kramp Welding stud 3/4" BSP LSN12D
£6.03 excl.
£7.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000328002
Kramp O-ring 27.8x3.6mm 70 shore 10x OR2780360P010
£2.51 excl.
£3.01 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000284129
Kramp HP nozzle 15° 090 suitable for Kärcher HD15090K
£10.58 excl.
£12.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000342800

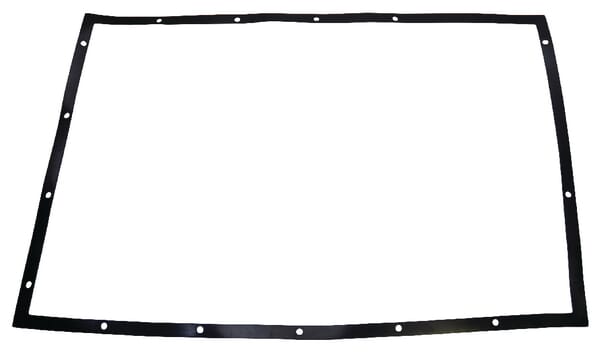

Kramp Seal kit for PSTM 225 PSTM9225AFD
