£24.03
excl. VAT
£28.84 incl. VAT
£28.84
incl. VAT
£24.03 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 15 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 136 mm |
| PPitch diameter | 132 mm |

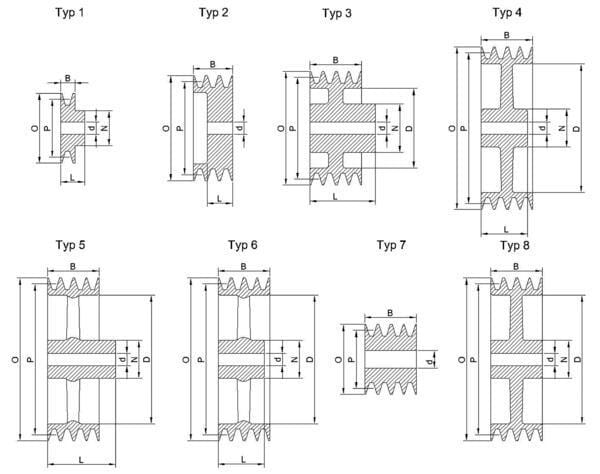

| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1278 g |
| Dimensions | 136 × 136 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000013553
Kramp Road marking paint yellow 2.5L 018294097258BKR
£82.38 excl.
£98.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000299535
Kramp High Leisure Shoe Oslo size 43 KF26050143
£50.76 excl.
£60.91 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000398935
Kramp Coupling 3/4" hose connection WK33032
£11.30 excl.
£13.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000362808
Kramp Dust cap, fem,+seal 1/4 BSP SK04S
£0.30 excl.
£0.36 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000032996
Kramp Bolt and nut M11x60, round countersunk square neck 1160VK
£1.01 excl.
£1.21 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000381854

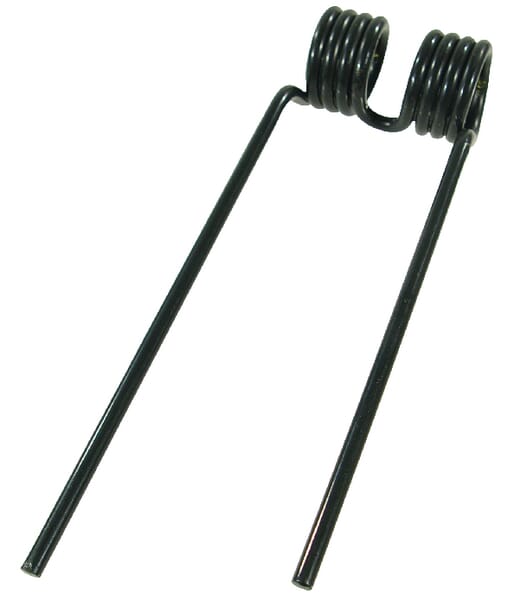

Kramp Rotary tine CW PZ VGPZ214KR
