£25.32
excl. VAT
£30.38 incl. VAT
£30.38
incl. VAT
£25.32 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 15 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 144 mm |
| PPitch diameter | 140 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1377 g |
| Dimensions | 145 × 145 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000178607
Kramp Oil seal 80x100x10mm type:CB Viton Stainless steel DIN 3760 1x 8010010CBVP001
£30.28 excl.
£36.34 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000240805
Kramp Front window upper CCGMAN010
£165.37 excl.
£198.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000398469

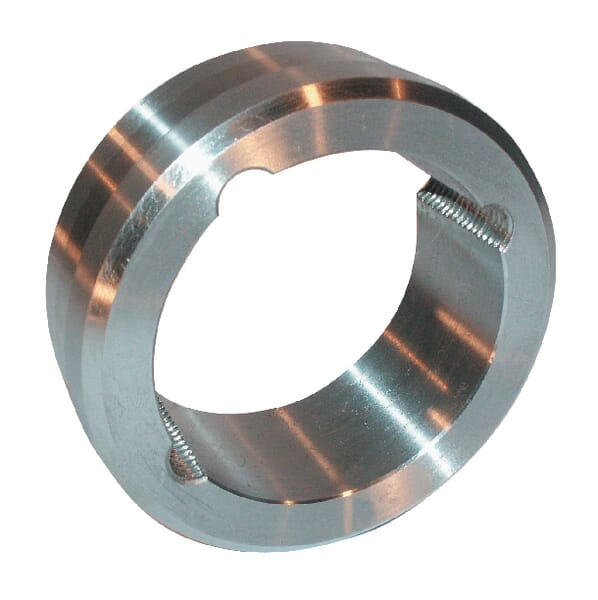

Kramp Welding hub taperlock 2517 WH2517
