£27.04
excl. VAT
£32.45 incl. VAT
£32.45
incl. VAT
£27.04 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 15 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 154 mm |
| PPitch diameter | 150 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607018685 |
|---|---|
| Unit of measure | EA |
| Weight | 1540 g |
| Dimensions | 154 × 154 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000243788

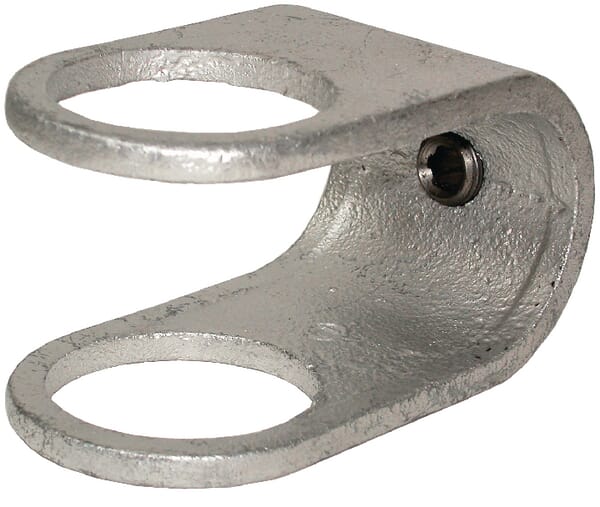

Kramp Cross l bracket 160-D 48.3mm C42G40
£10.25 excl.
£12.30 incl.
In stock
Expected to ship on Friday 18 September
BPA000371938

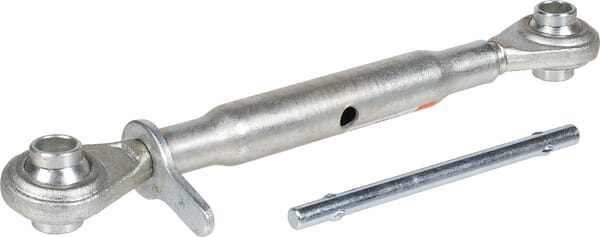

Kramp Toplink eye/eye 230, M22 cat.1/1 TL2302211KR
£24.04 excl.
£28.85 incl.
In stock
Expected to ship on Friday 18 September
BPA000331142
Kramp O-ring 85x3mm 70 shore OR853P001
£1.26 excl.
£1.51 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000070303

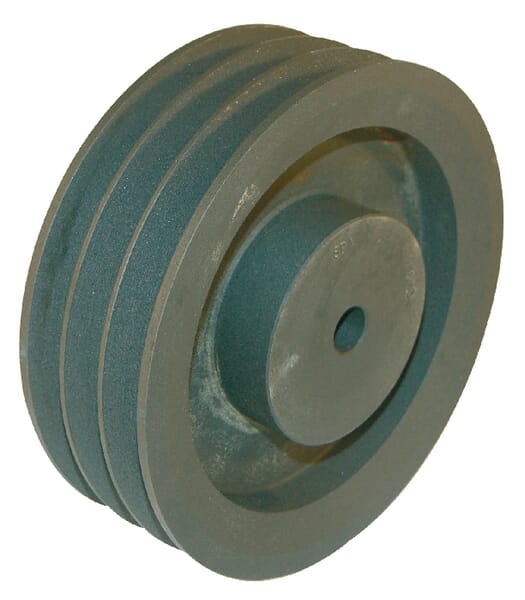

Kramp V-belt pulley 3 groove A or SPA diameter 230.50 mm 225A3
£101.92 excl.
£122.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000347577

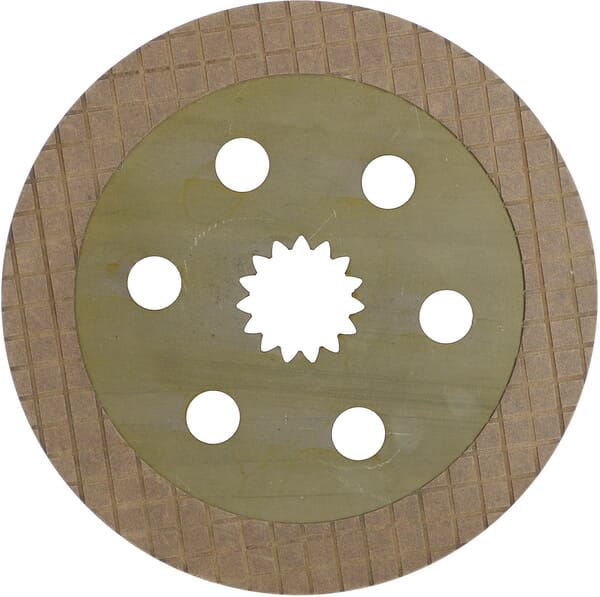

Kramp Brake disc 334-15 RE292445N
£101.98 excl.
£122.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000310818

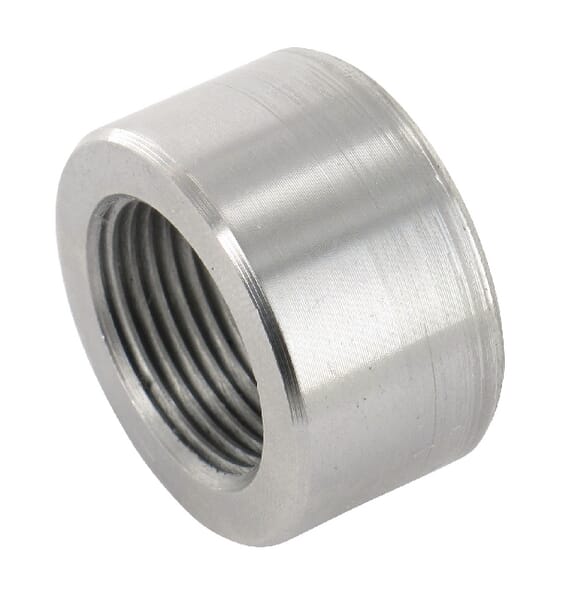

Kramp Welding stud M 22 x 1.5 LSNM2215
