£38.11
excl. VAT
£45.73 incl. VAT
£45.73
incl. VAT
£38.11 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 16 mm |
| Hub diameter | 92 mm |
| Hub width | 25 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 9 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 164 mm |
| PPitch diameter | 160 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250558 |
|---|---|
| Unit of measure | EA |
| Weight | 2100 g |
| Dimensions | 165 × 165 × 26 mm |
| Dangerous goods | No |
You might also like
BPA000116519

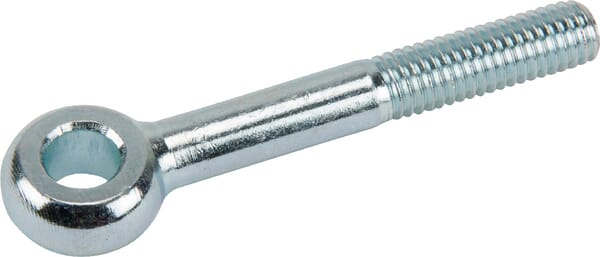

Kramp Eye bolt DIN444B M16x130 steel zinc-plated 4.6 444B16130
£7.06 excl.
£8.47 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000204482

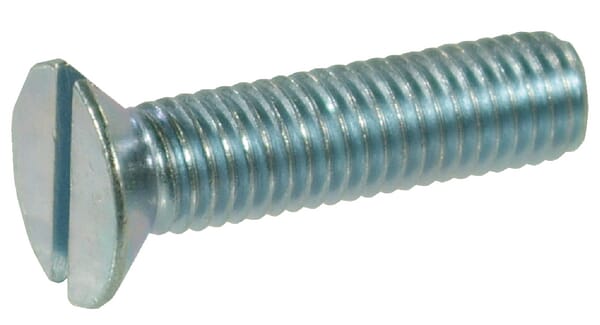

Kramp Countersunk screw DIN963 M4x35 steel zinc-plated 963435P100
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000190173

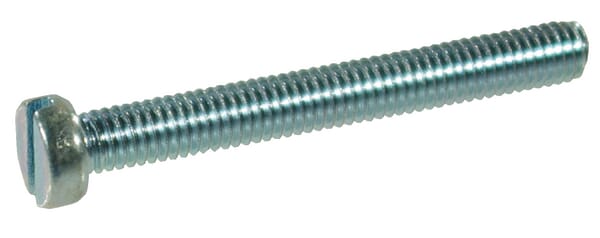

Kramp Slotted cheese head screw DIN84 M5x20 stainless steel A2 84520RVSP025
