£55.94
excl. VAT
£67.13 incl. VAT
£67.13
incl. VAT
£55.94 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 20 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 32 mm |
| Hub diameter | 55 mm |
| LHub width | 32 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 229 mm |
| PPitch diameter | 225 mm |
| Pulley type | 5 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607005906 |
|---|---|
| Unit of measure | EA |
| Weight | 2676 g |
| Dimensions | 230 × 230 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000268889

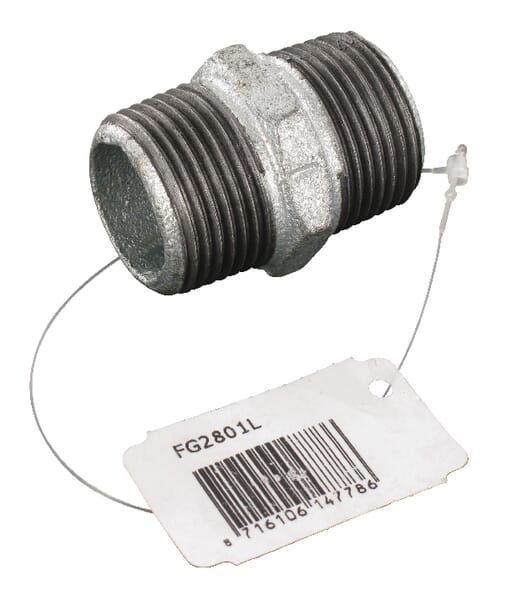

Kramp Double nipple male zn. 1" FG2801L
£1.58 excl.
£1.90 incl.
In stock
Expected to ship on Monday 21 September
BPA000152345

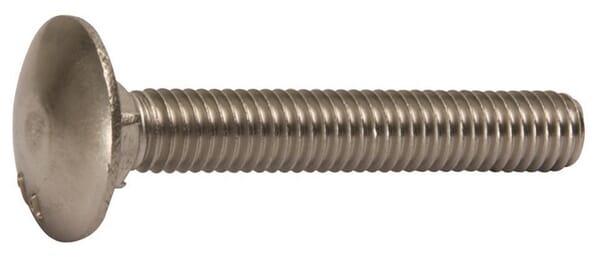

Kramp Coach bolt DIN603 M8x100 stainless steel 6038100RVSA4
£1.25 excl.
£1.51 incl.
In stock
Expected to ship on Monday 21 September
BPA000004411
Kramp Pin 0002356822KR
£3.05 excl.
£3.66 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000000801

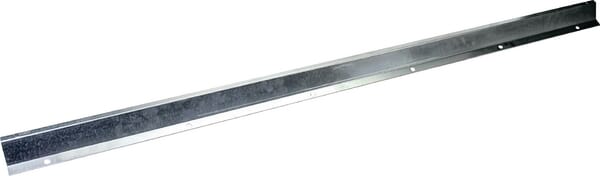

Kramp Impeller plate 0006349811KR
£78.03 excl.
£93.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000297188
Kramp Gloves red-grey microfibers/Spandex size 9/L Protect Gardening by KG0700509
£15.11 excl.
£18.13 incl.
In stock
Expected to ship on Monday 21 September
BPA000149464

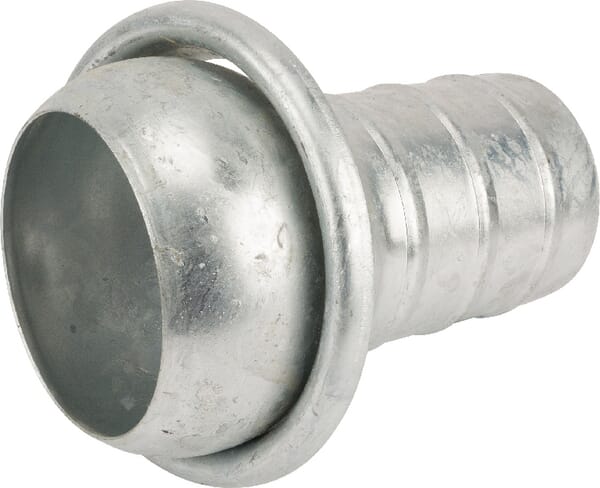

Kramp Male 6" with hose tail 5" 6124005Z
