£60.78
excl. VAT
£72.94 incl. VAT
£72.94
incl. VAT
£60.78 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 20 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 32 mm |
| Hub diameter | 55 mm |
| LHub width | 32 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 254 mm |
| PPitch diameter | 250 mm |
| Pulley type | 5 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3078 g |
| Dimensions | 260 × 260 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000241387
Kramp PTO - Walterscheid CFDS7202WS02DW01
£0.02 excl.
£0.02 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000251186

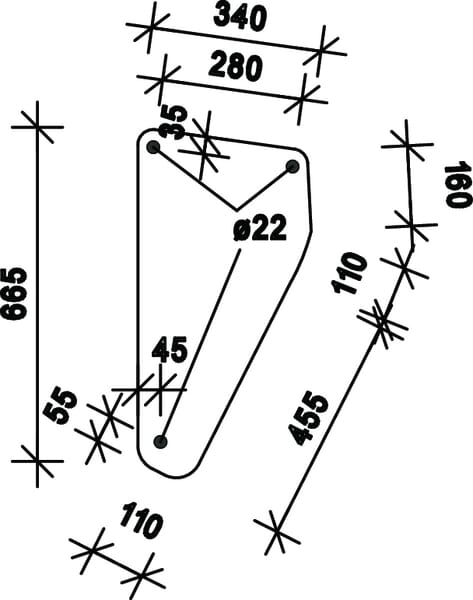

Kramp Windscreen lower D7711
£76.60 excl.
£91.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000196587

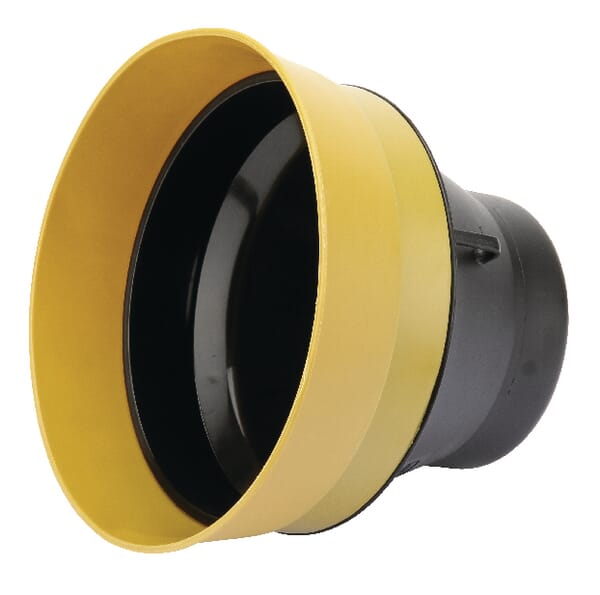

Kramp Guard cone 90000522
