£60.02
excl. VAT
£72.02 incl. VAT
£72.02
incl. VAT
£60.02 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

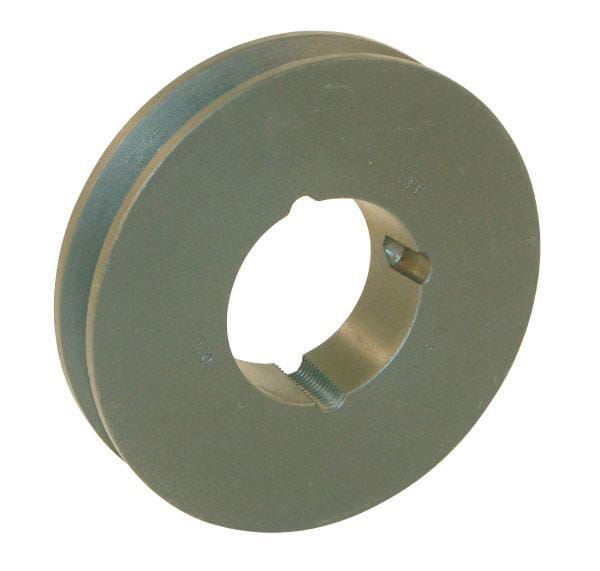

| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 16 mm |
| Hub diameter | 112 mm |
| Hub width | 32 mm |
| JChamber diameter | 221 mm |
| KHub offset 1 | 8 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 8 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 254 mm |
| PPitch diameter | 250 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250954 |
|---|---|
| Unit of measure | EA |
| Weight | 3257 g |
| Dimensions | 255 × 255 × 33 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000302291
Kramp Electric control valve NG6 KREV03C6024C
£177.68 excl.
£213.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000272446

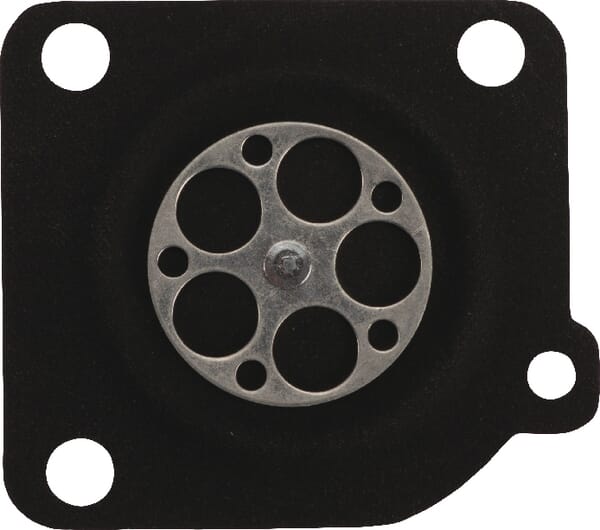

Kramp Diaphragm for carburettor Zama FGP430135
£7.42 excl.
£8.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000307092

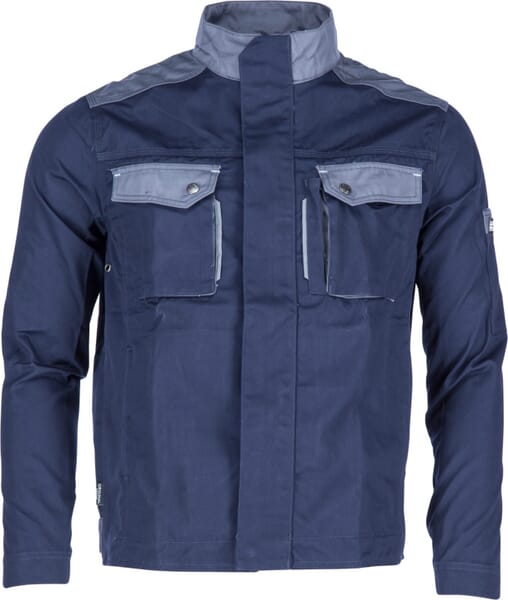

Kramp Work jacket, blue-grey, size 2XL, EU:58-60, Kramp Original KW101030091060
