£7.22
excl. VAT
£8.66 incl. VAT
£8.66
incl. VAT
£7.22 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 22 mm |
| Hub diameter | 45 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 60 mm |
| PPitch diameter | 56 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 361 g |
| Dimensions | 60 × 60 × 28 mm |
| Dangerous goods | No |
You might also like
BPA000203331
Kramp Hexagon head bolt DIN933 M14x35 steel 8.8 9331435B
£0.91 excl.
£1.09 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000360773

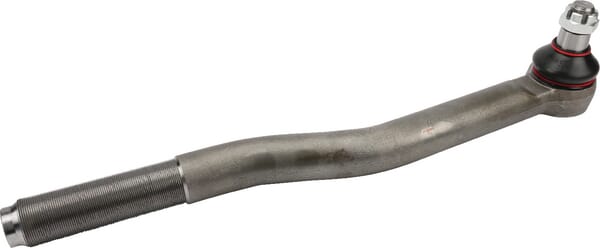

Kramp Tie rod end right SHP038KR
£328.61 excl.
£394.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000167948
Kramp Nissan grey metallic 1L 728108KR
£16.42 excl.
£19.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000202285
Kramp Hexagon nut DIN934 M10x1.50 stainless steel A2 93410RVSP500
£0.16 excl.
£0.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000242619

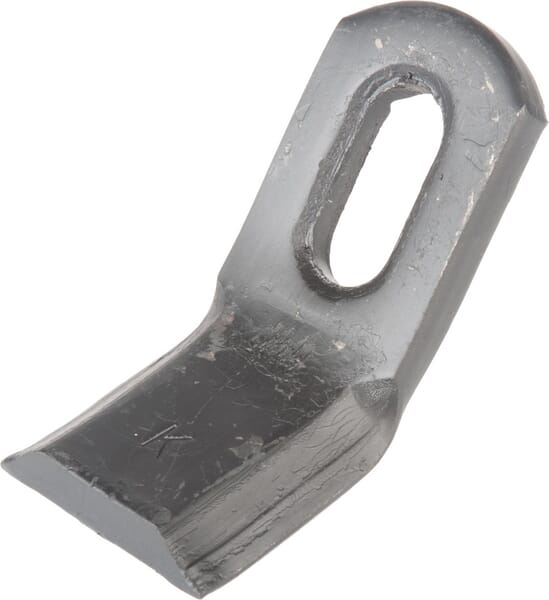

Kramp Tine for SMA TX952 CK1155
£2.73 excl.
£3.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000195887

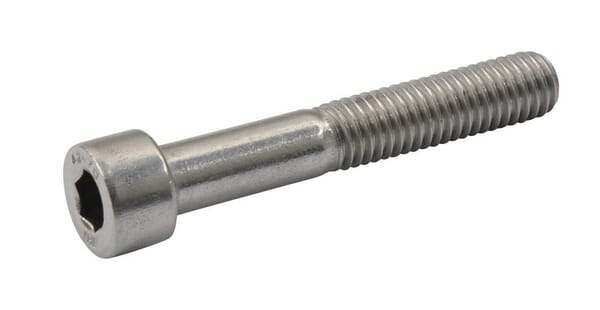

Kramp Hexagon socket head cap screw DIN912 M3x50 stainless steel A2 912350RVSP025
