£10.43
excl. VAT
£12.52 incl. VAT
£12.52
incl. VAT
£10.43 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 75 mm |
| PPitch diameter | 71 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607036177 |
|---|---|
| Unit of measure | EA |
| Weight | 550 g |
| Dimensions | 75 × 75 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000322052
Kramp Bearing NWB09416
£23.12 excl.
£27.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373067
Kramp Water pump V8366447817KR
£222.43 excl.
£266.92 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000129818
Kramp Cultivator point 600x40x20mm, reversible hardened, curved, 3 hole, suitable for Köckerling 506068KR
£100.96 excl.
£121.15 incl.
In stock
Expected to ship on Friday 18 September
BPA000131296

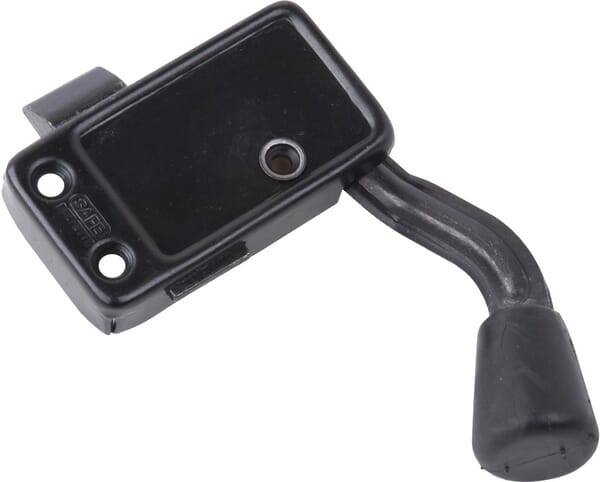

Kramp Right interior door lock suitable for New Holland 5108381KR
£50.99 excl.
£61.19 incl.
In stock
Expected to ship on Friday 18 September
BPA000321951

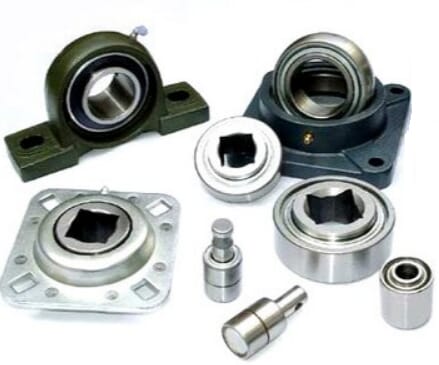

Kramp Bearing NWB09305
