£11.33
excl. VAT
£13.60 incl. VAT
£13.60
incl. VAT
£11.33 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 16 mm |
| Hub diameter | 60 mm |
| Hub width | 22 mm |
| Lock type | 1108 |
| Material | Cast iron |
| Max. bore diameter | 28 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 6 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 79 mm |
| PPitch diameter | 75 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 432 g |
| Dimensions | 100 × 100 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000179411
Kramp Countersunk head screw DIN7991 M16x70 stainless steel A2 79911670RVSP001
£2.95 excl.
£3.54 incl.
In stock
Expected to ship on Friday 18 September
BPA000356522

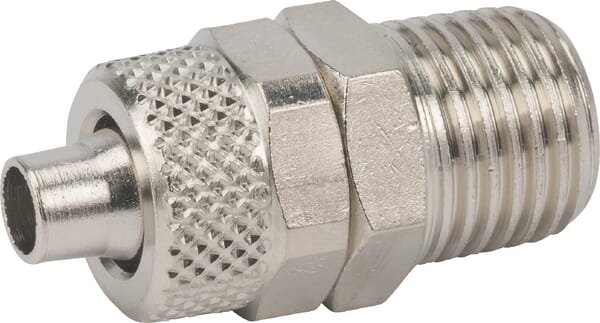

Kramp Straight push-on coupler SCPOT814
£1.33 excl.
£1.60 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000184847

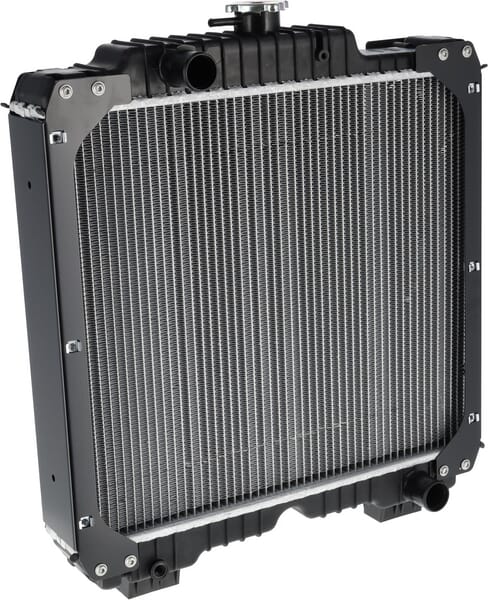

Kramp Radiator 84175586NN
£503.46 excl.
£604.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000304635

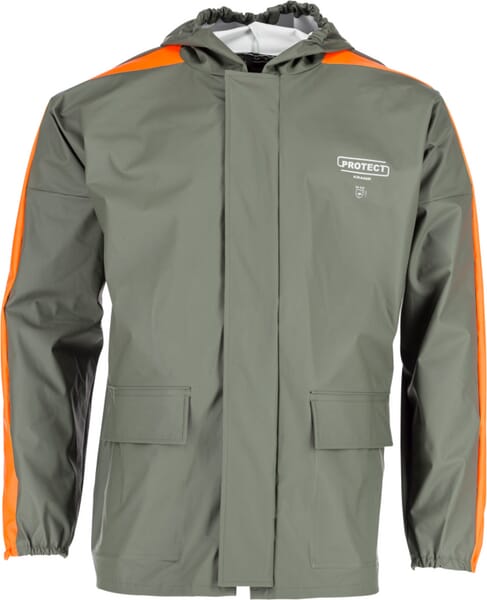

Kramp Raincoat, green-orange, size M, EU:50, Kramp Protect KW3184025050
£85.04 excl.
£102.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000199685

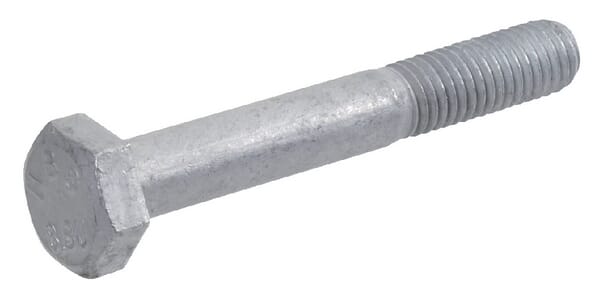

Kramp Hexagon head bolt DIN931 M14x80 steel zinc-plated 8.8 9311480TV
