£13.66
excl. VAT
£16.39 incl. VAT
£16.39
incl. VAT
£13.66 excl. VAT
In stock
Expected to ship on Friday 18 September

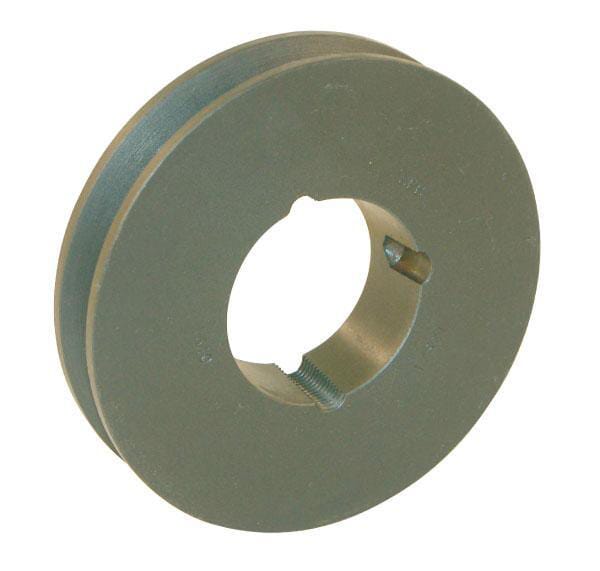

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 16 mm |
| Hub diameter | 75 mm |
| Hub width | 25 mm |
| Lock type | 1210 |
| Material | Cast iron |
| Max. bore diameter | 32 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 9 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 84 mm |
| PPitch diameter | 80 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486249866 |
|---|---|
| Unit of measure | EA |
| Weight | 525 g |
| Dimensions | 85 × 85 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000356810
Kramp Sprocket Duplex 13 teeth 1" chain 16 B-2 for taperlock bush 1615 SD113TL
£37.02 excl.
£44.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000082119

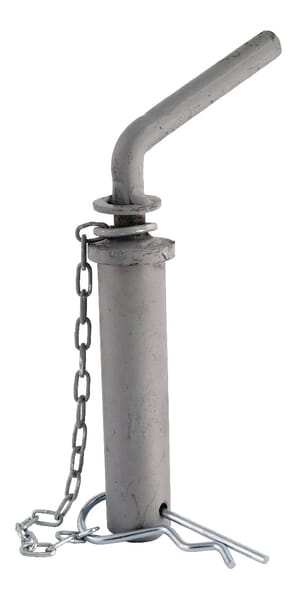

Kramp Transport hitch pin 3027005M91N
