£14.53
excl. VAT
£17.44 incl. VAT
£17.44
incl. VAT
£14.53 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 94 mm |
| PPitch diameter | 90 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607083737 |
|---|---|
| Unit of measure | EA |
| Weight | 853 g |
| Dimensions | 95 × 95 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000237218

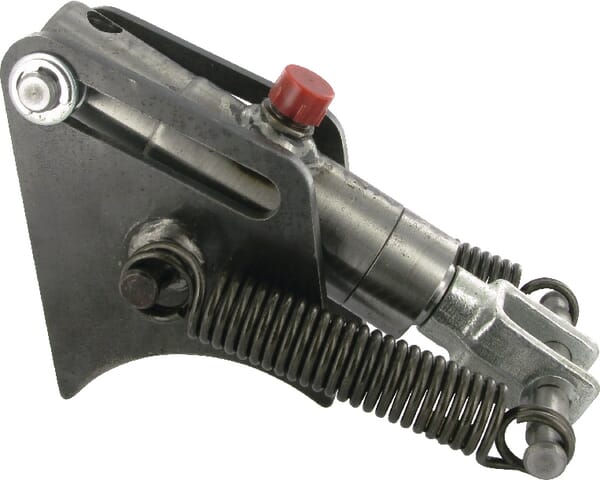

Kramp Hydraulic brake cylinder kit, unit BCB2075R
£119.15 excl.
£142.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000270817
Kramp Blade L: 533mm, 5 star hole: diameter 15.9 suitable for Husqvarna/Bernard by FGP011075
£18.46 excl.
£22.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000328981
Kramp O-ring 160x2mm 70 shore 10x OR1602P010
£18.61 excl.
£22.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000364175

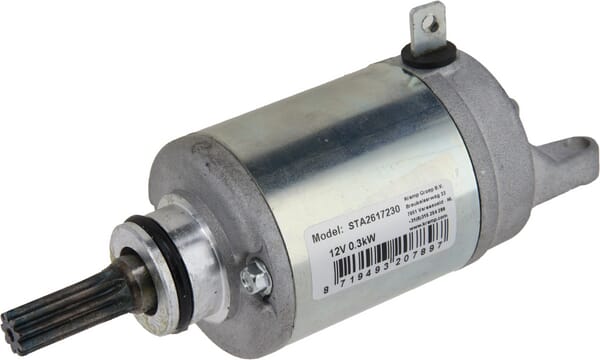

Kramp Starter 12V, 0.3kW, 9-teeth, CW STA2617230
£63.38 excl.
£76.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000189190

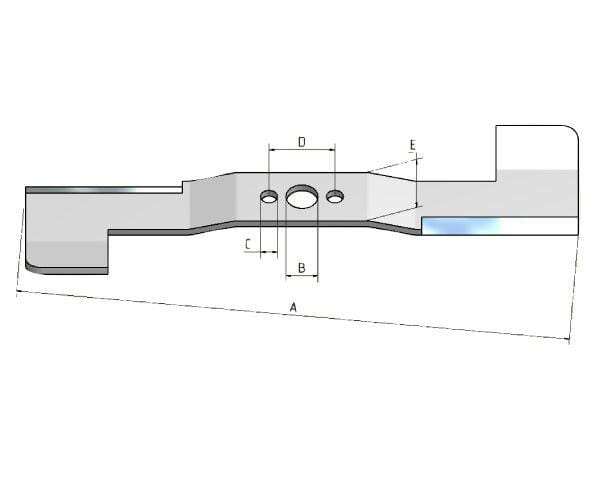

Kramp Blade L: 553x5mm round hole: diameter 15.9, PowerMulch 850973KR
