Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 16 mm |
| Hub diameter | 80 mm |
| Hub width | 25 mm |
| Lock type | 1210 |
| Material | Cast iron |
| Max. bore diameter | 32 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 9 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 94 mm |
| PPitch diameter | 90 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486249958 |
|---|---|
| Unit of measure | EA |
| Weight | 689 g |
| Dimensions | 95 × 95 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000319927
Kramp Bearing NWB07102
£5.16 excl.
£6.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000152356

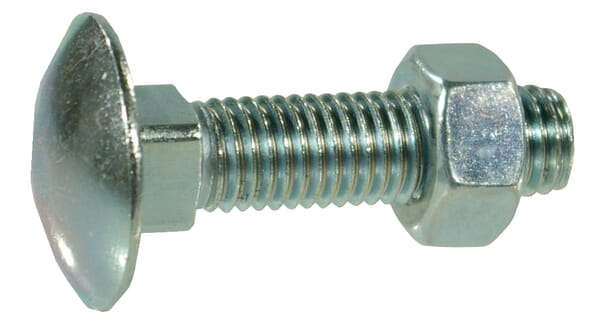

Kramp Coach bolt DIN603 M8x130 steel hot dip galvanized 4.8 6038130TV
£0.67 excl.
£0.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000356559

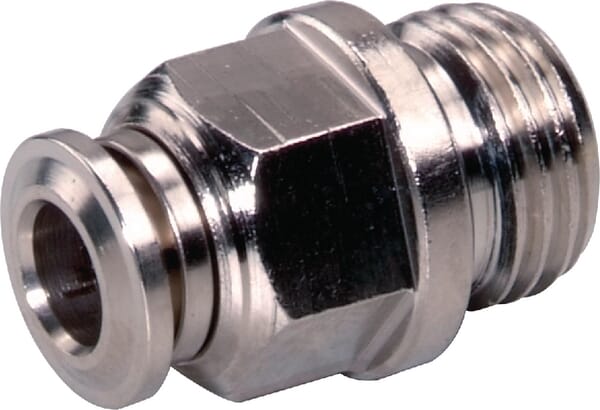

Kramp Push-in fitting straight 4x1/4 SCS414NSF
£4.46 excl.
£5.35 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000130938
Kramp Brake cylinder suitable for New Holland 5103927KR
£376.70 excl.
£452.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000287348
Kramp Bulkhead coupling 8L M14x1,5 GSS8LKR
£1.20 excl.
£1.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000059170

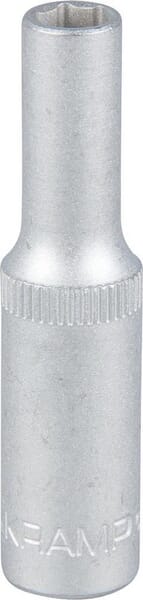

Kramp Socket long 1/4" 6-point 5 mm 18060063050KR
