£16.20
excl. VAT
£19.44 incl. VAT
£19.44
incl. VAT
£16.20 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 99 mm |
| PPitch diameter | 95 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 948 g |
| Dimensions | 100 × 100 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000003127

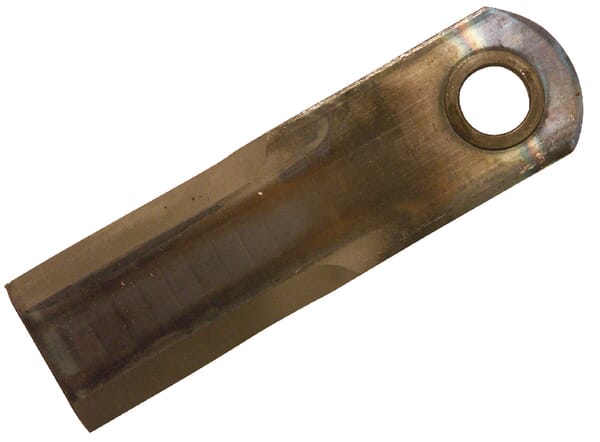

Kramp Rotary straw chopper knife 175x50x4mm diameter 20mm 0007558740KR
£8.88 excl.
£10.66 incl.
In stock
Expected to ship on Monday 28 September
BPA000058323
Kramp Tyre lever 650mm bent 1818190651KR
£30.21 excl.
£36.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000304478

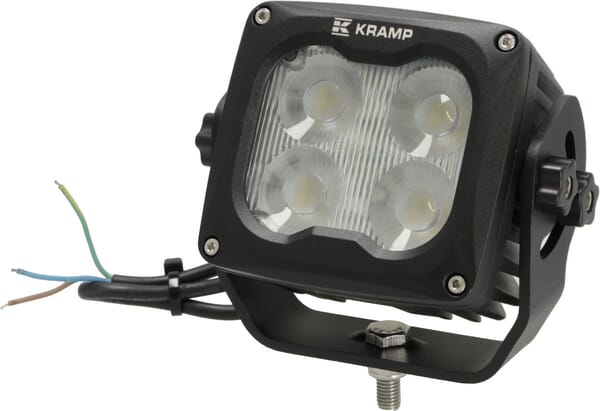

Kramp Work light LED, 70W, 6000lm, square, 10/45V, white, 120x110x72mm, Heated by T° sensor, Wide flood, 4 LED's, LA104041
£89.62 excl.
£107.54 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000249920

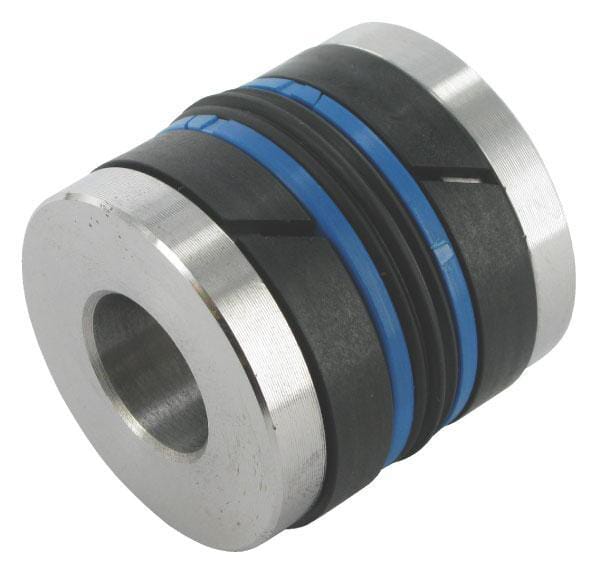

Kramp Piston DS25 bore 32 (pre-assembled) DS2903204VM
£12.14 excl.
£14.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232722
Kramp Fuel cap, metal tank suitable for John Deere AT20911N
£9.64 excl.
£11.57 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000398231

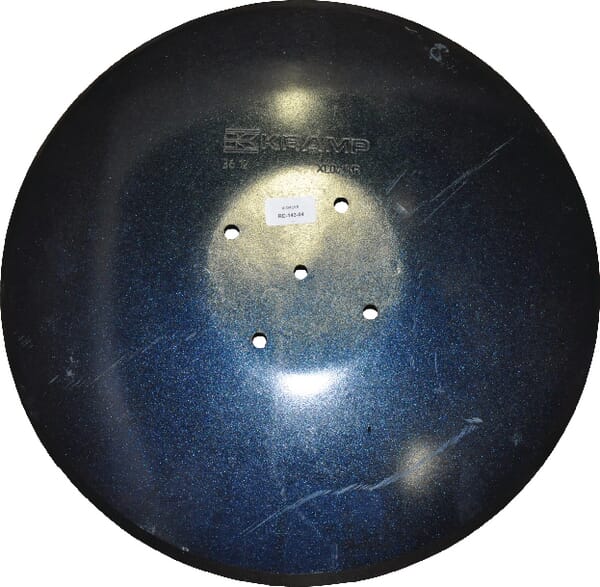

Kramp Harrow disc plain 460x4 LK120 Catros XL041KR
