£21.94
excl. VAT
£26.33 incl. VAT
£26.33
incl. VAT
£21.94 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 35 mm |
| Hub width | 35 mm |
| JChamber diameter | 63 mm |
| KHub offset 1 | 10 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 100.5 mm |
| PPitch diameter | 95 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245097 |
|---|---|
| Unit of measure | EA |
| Weight | 862 g |
| Dimensions | 100 × 100 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000311086
Kramp Trashboard RH LZ105102N
£37.62 excl.
£45.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000323333
Kramp Bearing NWB08632
£5.04 excl.
£6.05 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000377064

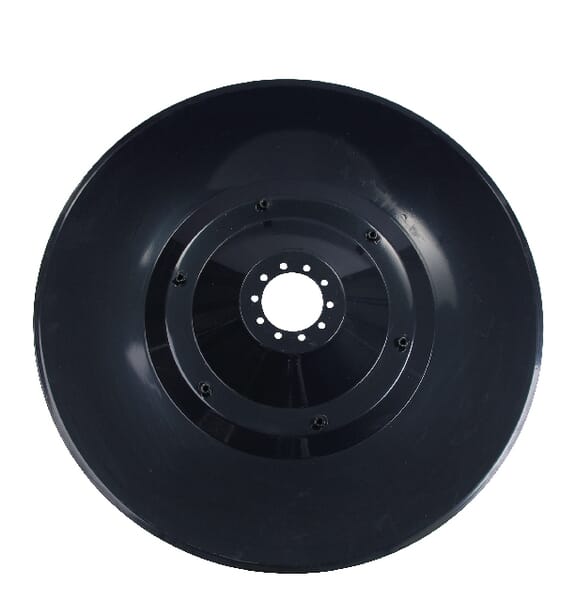

Kramp Mower disc diameter 995mm VF06580818KR
