£25.58
excl. VAT
£30.70 incl. VAT
£30.70
incl. VAT
£25.58 excl. VAT
In stock
Expected to ship on Monday 21 September

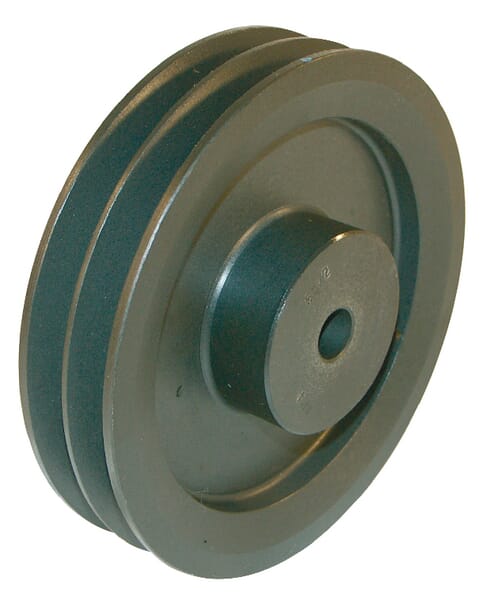

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 15 mm |
| BWorking width | 35 mm |
| Contains spokes | No |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 30 mm |
| Hub diameter | 50 mm |
| LHub width | 50 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 117.5 mm |
| PPitch diameter | 112 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 8719774920262 |
|---|---|
| Unit of measure | EA |
| Weight | 2328 g |
| Dimensions | 120 × 120 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000269542
Kramp Carb gasket FGP001736
£1.13 excl.
£1.36 incl.
In stock
Expected to ship on Monday 21 September
BPA000267427

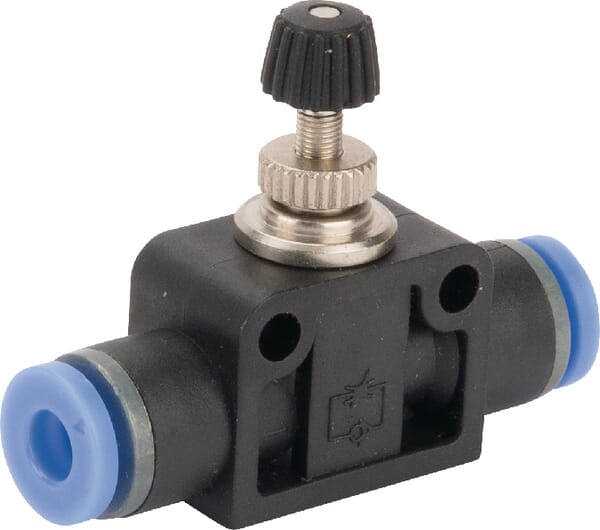

Kramp Flow control valve SQ 4 - SQ 4 FCVPI44
£21.21 excl.
£25.45 incl.
In stock
Expected to ship on Monday 21 September
BPA000095669
Kramp Timing pulley Type -T5 25Z 36T5252
£4.83 excl.
£5.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000193159
Kramp Paint RAL 9018 papyrus white 1L 901808KR
£16.42 excl.
£19.70 incl.
In stock
Expected to ship on Monday 21 September
BPA000305024
Kramp Rain coverall black (L) KW3182301054
£29.43 excl.
£35.32 incl.
In stock
Expected to ship on Monday 21 September
BPA000307447
Kramp Summer overalls, size 3XL, green, Original Light by KW104424082062
£67.41 excl.
£80.89 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000234346

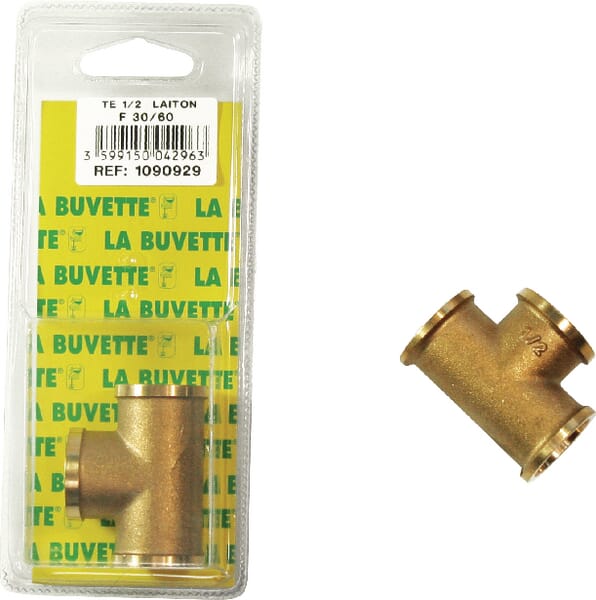

LA BUVETTE T piece 1/2 brass F30/60 BU1090929
