£46.69
excl. VAT
£56.03 incl. VAT
£56.03
incl. VAT
£46.69 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 15 mm |
| BWorking width | 35 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 49 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 175.5 mm |
| PPitch diameter | 170 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3288 g |
| Dimensions | 175 × 175 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000398942

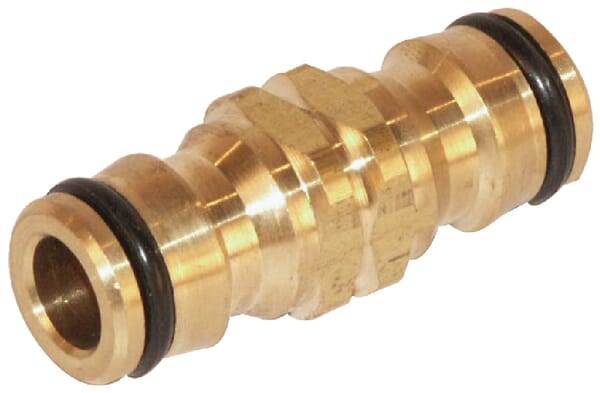

Kramp Quick coupling 2-way WK33051
£3.17 excl.
£3.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203984

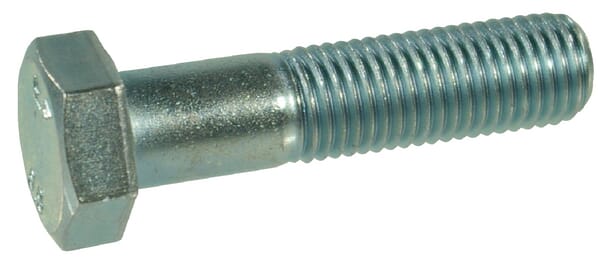

Kramp Hexagon head bolt DIN960 M10x1.25x100 steel zinc-plated 8.8 96010125100
£1.65 excl.
£1.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000135633
Kramp Överum blue 1L 520508KR
£16.42 excl.
£19.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000201964
Kramp Hexagon head bolt DIN933 M6x12 steel 8.8 933612B
£0.05 excl.
£0.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000306008

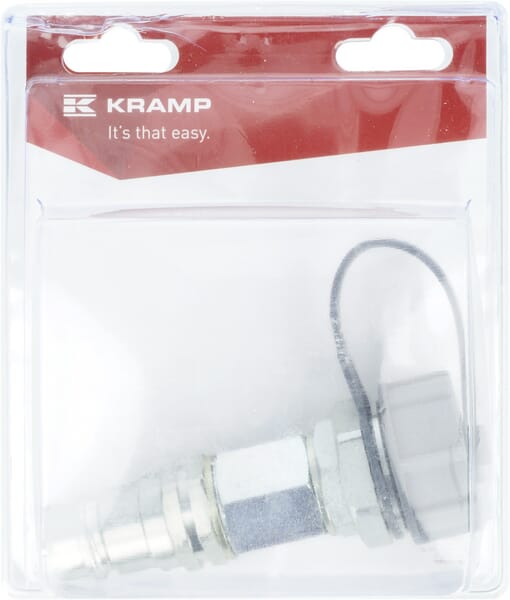

Kramp Quick release adaptor FR/ ISO 1/2" (1) KRVPXLGP01B
£47.68 excl.
£57.21 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000306316

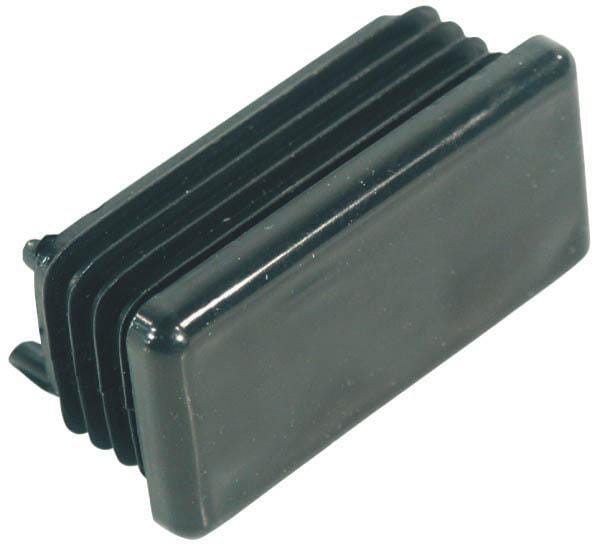

Kramp Plastic cap 90x50mm KS498715
