£66.93
excl. VAT
£80.32 incl. VAT
£80.32
incl. VAT
£66.93 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 20 mm |
| BWorking width | 35 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 49 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 185.5 mm |
| PPitch diameter | 180 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 8719774921023 |
|---|---|
| Unit of measure | EA |
| Weight | 4170 g |
| Dimensions | 200 × 200 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000196936

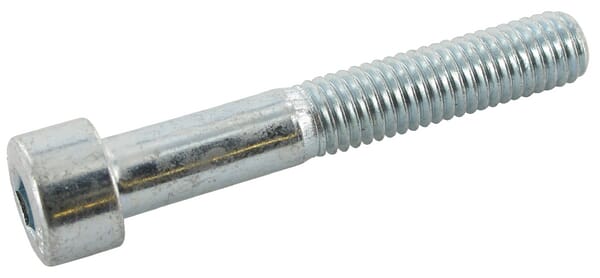

Kramp Hexagon socket head cap screw DIN912 M4x50 steel zinc-plated 8.8 912450
£0.28 excl.
£0.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000291166

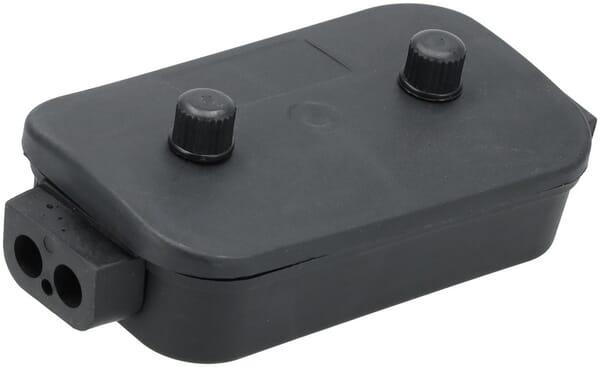

Kramp Cable Junction Box 8 Pole JB1008KR
£6.23 excl.
£7.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000077322
Kramp Oil seal 25x50x10mm type:CC DIN 3760 10x 255010CCP010
£13.41 excl.
£16.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000283723

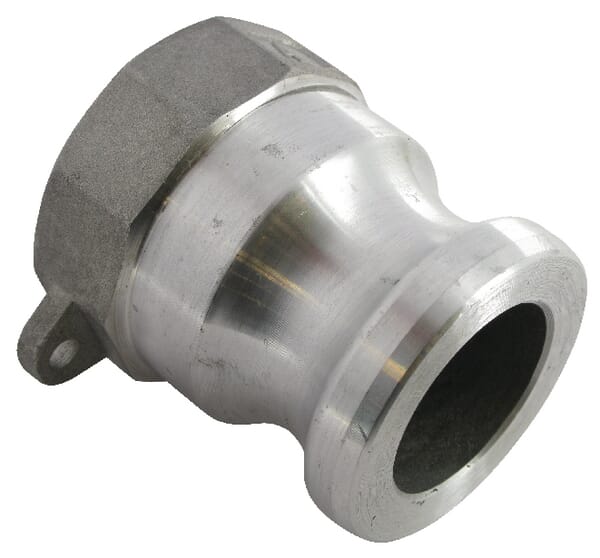

Kramp Camlock Type A 1 1/4" female thread Stainless steel HCN100ASS032
£13.05 excl.
£15.66 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000337781

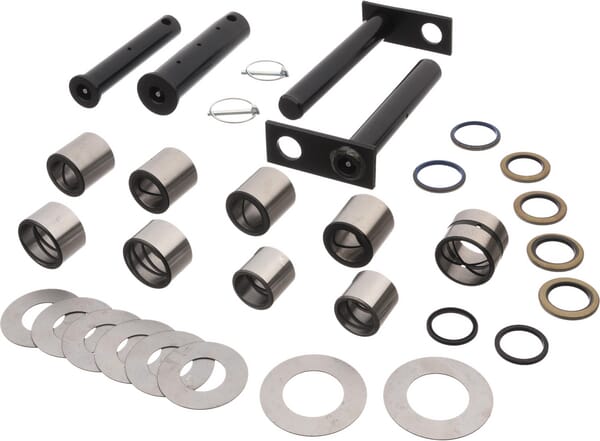

Kramp Pin and bush kit PBKUBU253
£327.89 excl.
£393.47 incl.
In stock
Expected to ship on Monday 21 September
BPA000185759

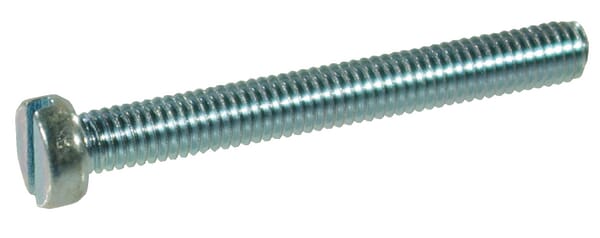

Kramp Slotted cheese head screw DIN84 M4x12 steel zinc-plated 4.8 84412P100
