£57.79
excl. VAT
£69.35 incl. VAT
£69.35
incl. VAT
£57.79 excl. VAT
In stock
Expected to ship on Monday 21 September

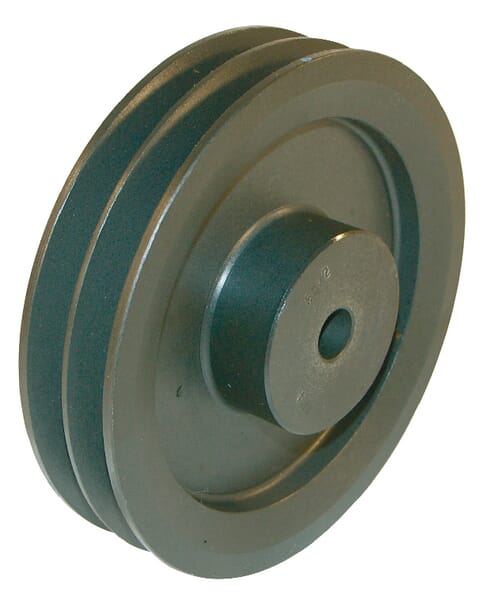

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Bore diameter | 20 mm |
| BWorking width | 35 mm |
| Contains spokes | Yes |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| dMax. bore diameter | 44 mm |
| Hub diameter | 75 mm |
| LHub width | 49 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 205.5 mm |
| PPitch diameter | 200 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 8719774921153 |
|---|---|
| Unit of measure | EA |
| Weight | 4705 g |
| Dimensions | 205 × 205 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000289500

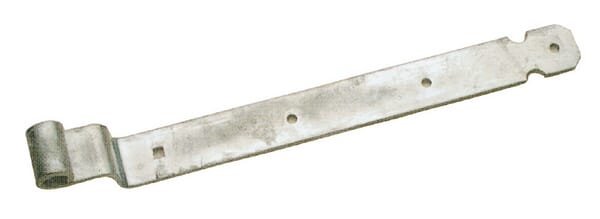

Kramp Offset hinge 16x450 mm HS580132
£8.05 excl.
£9.66 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000260840

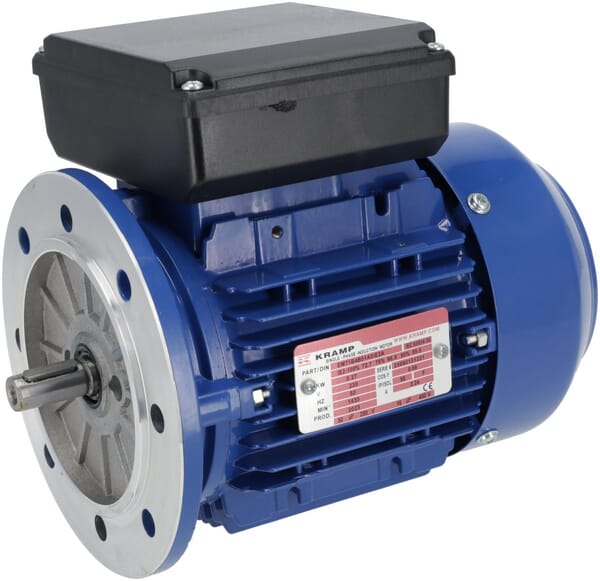

Kramp Electric motor 0.37 kW EM71B4B51A0IE2A
£180.39 excl.
£216.47 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000373519

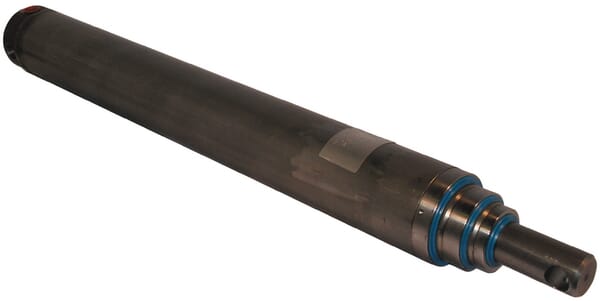

Kramp Ram 3-stage 13/9/5x2032 Chrome TC31202032PG
£544.64 excl.
£653.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000403664

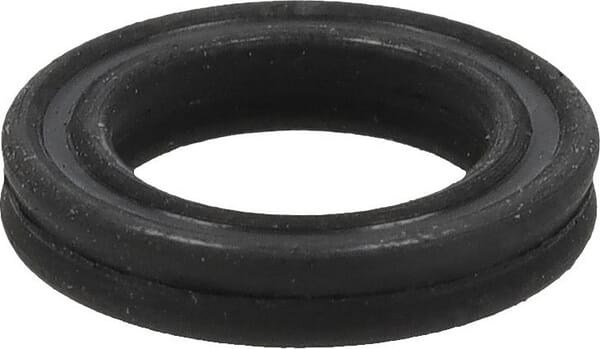

Kramp X-ring 9.25x1.78 75 shore Viton 10x XR925178VP010
£12.96 excl.
£15.55 incl.
In stock
Expected to ship on Monday 21 September
BPA000269605

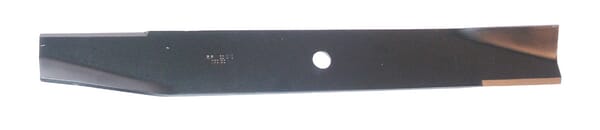

Kramp Blade L: 480mm, round hole: diameter 16 suitable for Hayter by FGP007066
£13.43 excl.
£16.12 incl.
In stock
Expected to ship on Monday 21 September
BPA000060730

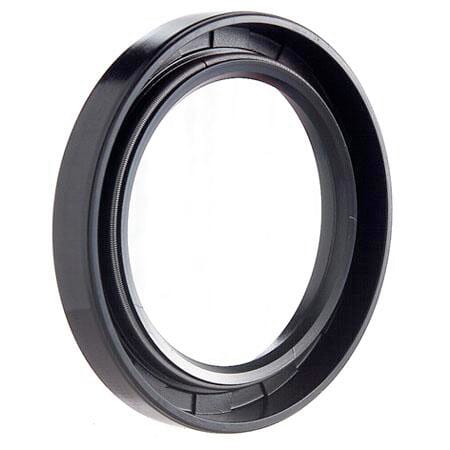

Kramp Oil seal 19x40x10mm type:CB DIN 3760 1x 194010CBP001
