£97.66
excl. VAT
£117.19 incl. VAT
£117.19
incl. VAT
£97.66 excl. VAT
In stock
Expected to ship on Wednesday 23 September

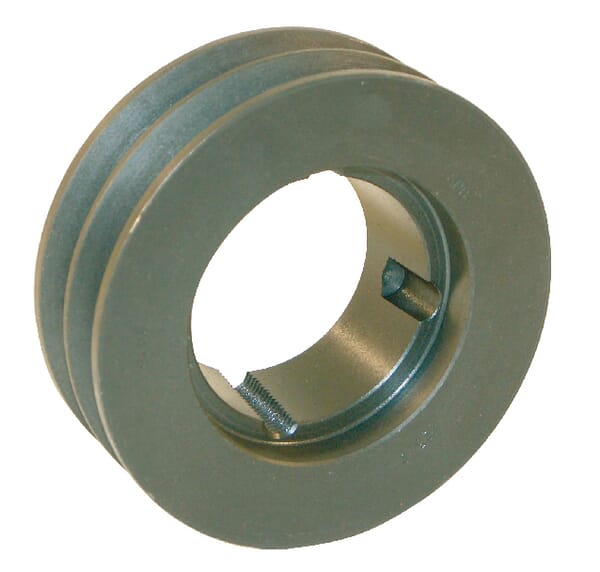

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| ECore disc thickness | 12 |
| FWorking width | 35 mm |
| Hub diameter | 124 mm |
| Hub width | 35 mm |
| JChamber diameter | 215 mm |
| KHub offset 1 | 5 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 5 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 255.5 mm |
| PPitch diameter | 250 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245936 |
|---|---|
| Unit of measure | EA |
| Weight | 5793 g |
| Dimensions | 255 × 255 × 44 mm |
| Dangerous goods | No |
You might also like
BPA000057930

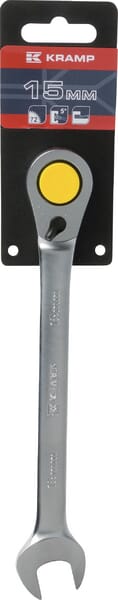

Kramp Combination ratchet spanner 15mm, 1802030015KR
£19.86 excl.
£23.83 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000047304
Kramp Fuel pump repair kit, 1492685KR
£19.27 excl.
£23.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000156603
Kramp Oil seal 65x90x12mm type:BB DIN 3760 1x 659012BBP001
£13.93 excl.
£16.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000081124

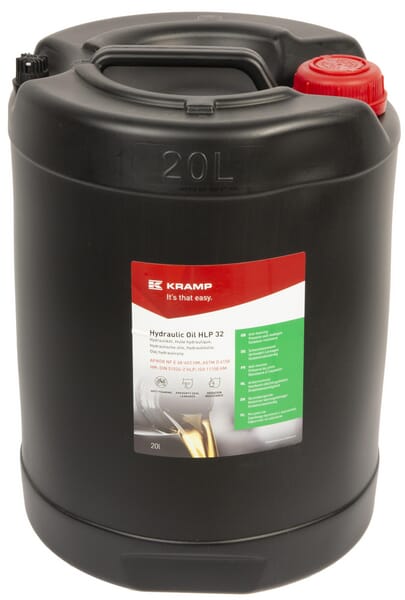

Kramp Hydraulic oil, 20l, mineral, ISO 32, HLP by 30121020WEKR
