£53.81
excl. VAT
£64.57 incl. VAT
£64.57
incl. VAT
£53.81 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product
A 2-groove V-belt pulley designed for SPB and B-profile belts, with an outside diameter of 132 mm and pitch diameter of 125 mm. The pulley features a 15 mm bore (expandable up to 42 mm maximum) and a 60 mm hub width, with a 17 mm belt width and 44 mm working width. Cast iron construction, rated for a maximum speed of 30 m/s. Hub bore, keyway and tapped hole are optional. Supplied as a single piece. The pulley weighs 3433 g with overall dimensions of 130 × 130 × 60 mm. EAN 8719774920507. Suitable for construction machinery, forestry machinery, agricultural machinery and mechanical engineering applications.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Bore diameter | 15 mm |
| BWorking width | 44 mm |
| Contains spokes | No |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| dMax. bore diameter | 42 mm |
| Hub diameter | 55 mm |
| LHub width | 60 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 132 mm |
| PPitch diameter | 125 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 8719774920507 |
|---|---|
| Unit of measure | EA |
| Weight | 3433 g |
| Dimensions | 130 × 130 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000054887
Kramp Headed drill bush 16x26x16 172A162616
£27.23 excl.
£32.68 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000392512

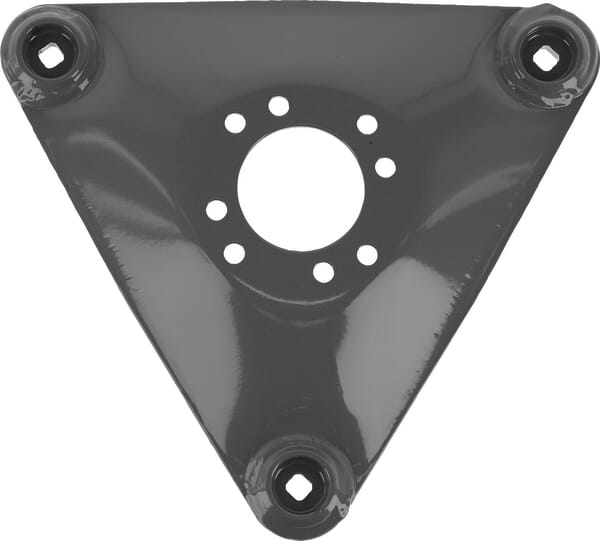

Kramp Triangle Saucer VNB2280294N
£121.65 excl.
£145.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000109667
Kramp Oil seal 40x62x10mm type:CB DIN 3760 1x 406210CBP001
£4.40 excl.
£5.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000268776

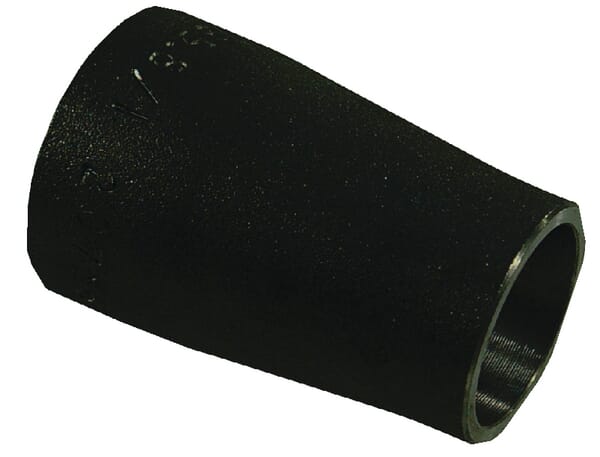

Kramp Reducer black 1 1/4"x3/4" FG24711434B
