£37.05
excl. VAT
£44.46 incl. VAT
£44.46
incl. VAT
£37.05 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| FWorking width | 44 mm |
| Hub width | 32 mm |
| JChamber diameter | 82 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 12 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 132 mm |
| PPitch diameter | 125 mm |
| Pulley type | 2 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486246476 |
|---|---|
| Unit of measure | EA |
| Weight | 2000 g |
| Dimensions | 132 × 132 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000093461

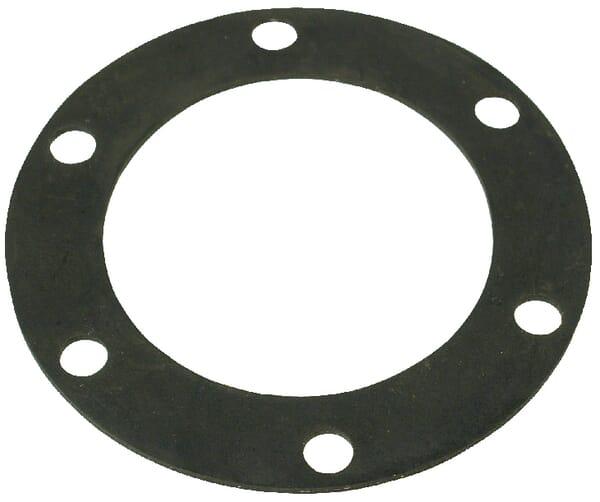

Kramp Gasket SBR70 for 3" flange 200x90x3mm 3339800
£4.94 excl.
£5.93 incl.
In stock
Expected to ship on Monday 21 September
BPA000203685
Kramp Hexagon head bolt DIN933 M24x50 stainless steel A2 9332450RVS
£5.56 excl.
£6.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000109188

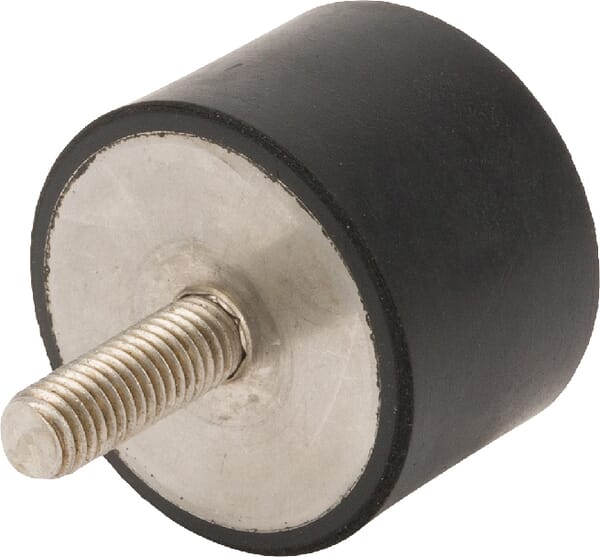

Kramp Vibration damper TYPE D 4028D55RVS
