£94.81
excl. VAT
£113.77 incl. VAT
£113.77
incl. VAT
£94.81 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details

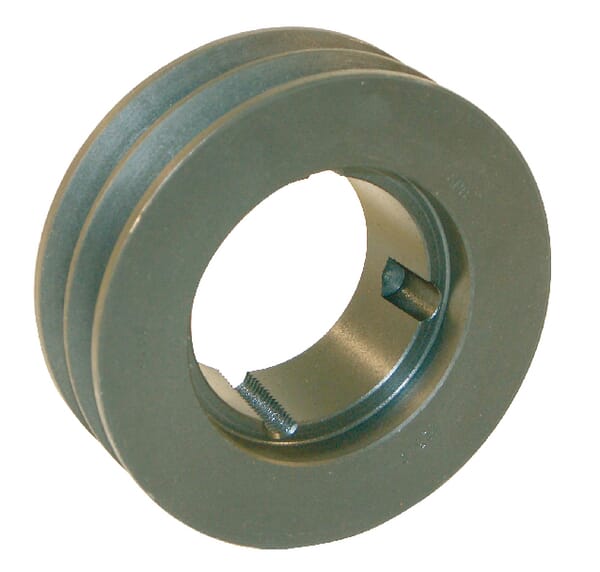

| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 15 |
| FWorking width | 44 mm |
| Hub diameter | 117 mm |
| Hub width | 45 mm |
| JChamber diameter | 181 mm |
| KHub offset 1 | 1 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 231 mm |
| PPitch diameter | 224 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486247107 |
|---|---|
| Unit of measure | EA |
| Weight | 6883 g |
| Dimensions | 230 × 230 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000357666
Kramp Sprocket Simplex 9 teeth 1 1/4" chain 20 B-1 SE11409
£9.57 excl.
£11.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000164394

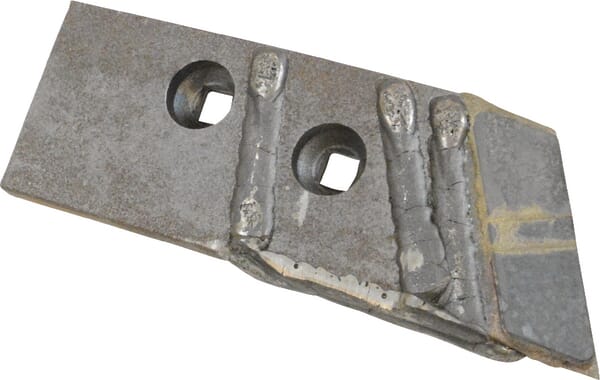

Kramp Share point LH carbide 7363CN
£84.32 excl.
£101.18 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235962

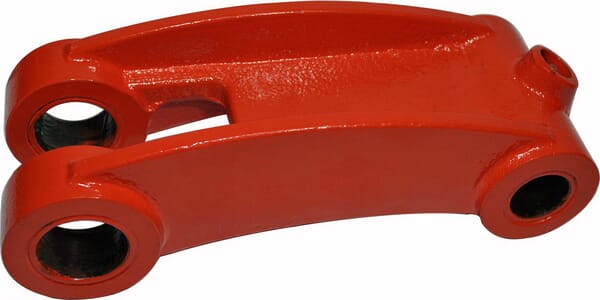

Kramp Bucket link Kubota BLKUB003
£311.94 excl.
£374.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000071623

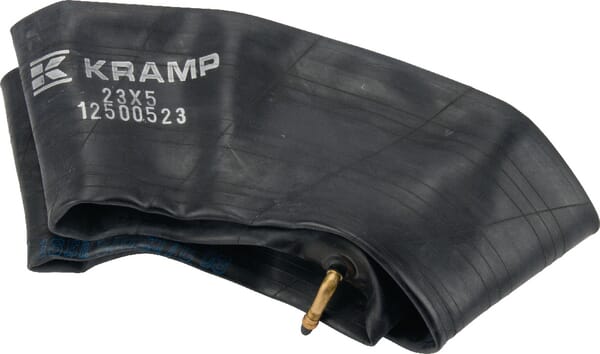

Kramp Inner tube for rim diameter 5", 23x5, bent valve 90° TR87, 235GW485060
£11.66 excl.
£13.99 incl.
In stock
Expected to ship on Monday 21 September
BPA000092720

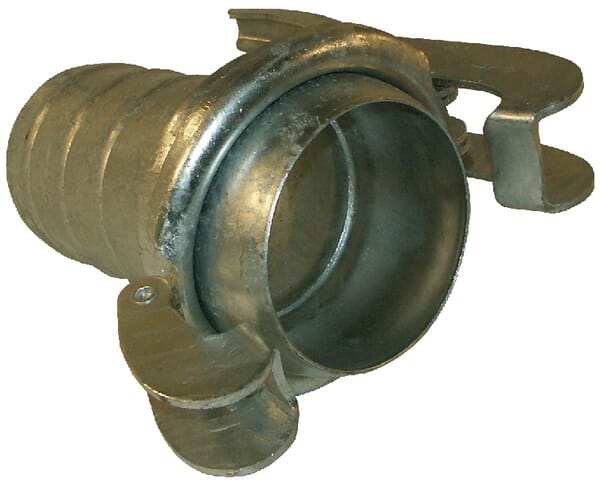

Kramp Male 3 1/2", 3" hose end, Bauer 35144000Z
