£130.68
excl. VAT
£156.82 incl. VAT
£156.82
incl. VAT
£130.68 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 20 |
| FWorking width | 44 mm |
| Hub diameter | 125 mm |
| Hub width | 45 mm |
| JChamber diameter | 237 mm |
| KHub offset 1 | 1 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 287 mm |
| PPitch diameter | 280 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486247398 |
|---|---|
| Unit of measure | EA |
| Weight | 8067 g |
| Dimensions | 290 × 290 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000198416
Kramp Hexagon head bolt DIN931 M36x220 steel zinc-plated 8.8 93136220
£15.26 excl.
£18.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000109684
Kramp Oil seal 40x62x7mm type:CB Viton Stainless steel DIN 3760 1x 40627CBVP001
£13.17 excl.
£15.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000398954
Kramp Quick coupling 3/4" female WK33122
£3.07 excl.
£3.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000319837
Kramp Bearing NWB07007
£256.31 excl.
£307.57 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000337824
Kramp Pipe bracket set S.S. 139.7mm PBS139RVS
£41.45 excl.
£49.74 incl.
In stock
Expected to ship on Monday 21 September
BPA000245264

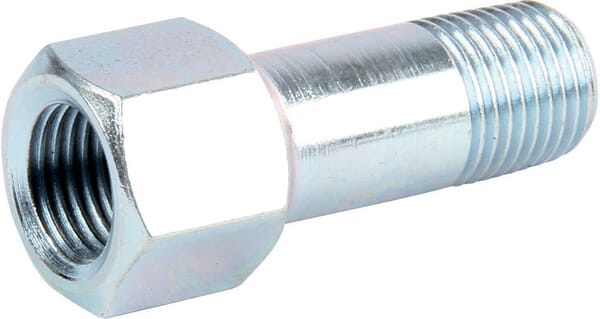

Kramp Extension M10 - M10 CLVMK10M1035
