£181.79
excl. VAT
£218.15 incl. VAT
£218.15
incl. VAT
£181.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 20 |
| FWorking width | 44 mm |
| Hub diameter | 125 mm |
| Hub width | 45 mm |
| JChamber diameter | 292 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 1 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 342 mm |
| PPitch diameter | 335 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 8719607039208 |
|---|---|
| Unit of measure | EA |
| Weight | 10242 g |
| Dimensions | 344 × 342 × 48 mm |
| Dangerous goods | No |
You might also like
BPA000199380
Kramp Hexagon head bolt DIN931 M10x65 steel 10.9 9311065109B
£0.71 excl.
£0.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000152382
Kramp Coach bolt DIN603 M8x35 steel zinc-plated 8.8 60383588
£0.17 excl.
£0.20 incl.
In stock
Expected to ship on Friday 18 September
BPA000331477
Kramp O-ring 98x4mm 70 shore OR984P001
£1.76 excl.
£2.11 incl.
In stock
Expected to ship on Monday 21 September
BPA000149606

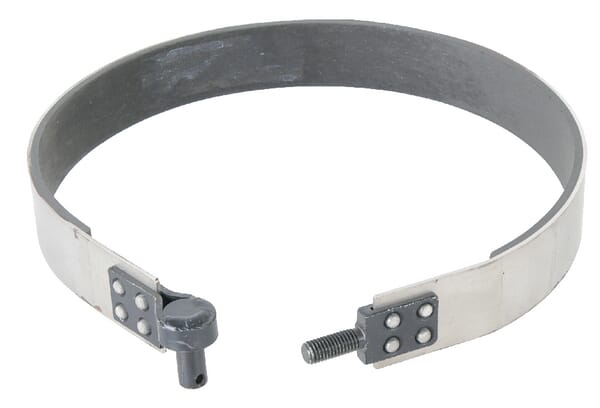

Kramp Brake Band RH Renault 6005009133N
£91.46 excl.
£109.75 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000372071

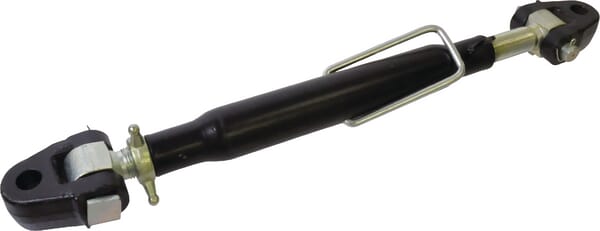

Kramp Toplink knuckle/knuckle 450, M36 cat.2/2 TL45036254254KR
