£163.86
excl. VAT
£196.63 incl. VAT
£196.63
incl. VAT
£163.86 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 15 |
| FWorking width | 44 mm |
| Hub diameter | 144 mm |
| Hub width | 51 mm |
| JChamber diameter | 312 mm |
| KHub offset 1 | 3.5 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 3.5 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 362 mm |
| PPitch diameter | 355 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486247671 |
|---|---|
| Unit of measure | EA |
| Weight | 10815 g |
| Dimensions | 362 × 362 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000041012
Kramp Washer M16x30x3mm, Steel None DIN 125a 125A16B
£0.24 excl.
£0.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000146174
Kramp Exhaust clamp 38-40 mm 590020KR
£1.61 excl.
£1.93 incl.
In stock
Expected to ship on Friday 18 September
BPA000269667

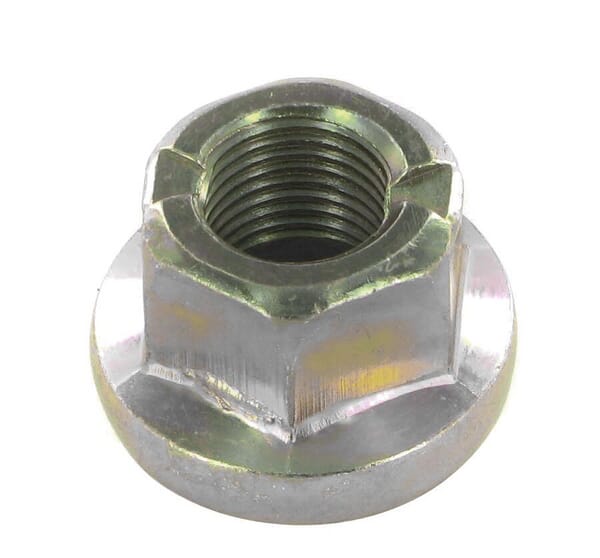

Kramp Nut 9/16UNC, suitable for AYP139729 FGP010124B
