£117.88
excl. VAT
£141.46 incl. VAT
£141.46
incl. VAT
£117.88 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 22 mm |
| Bore diameter | 20 mm |
| BWorking width | 59.5 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | C, SPC |
| dMax. bore diameter | 48 mm |
| Hub diameter | 80 mm |
| LHub width | 60 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 209.6 mm |
| PPitch diameter | 200 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB22 - 180 mm, For SPC - 224 mm, For XPC - 180 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7820 g |
| Dimensions | 210 × 210 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000157729

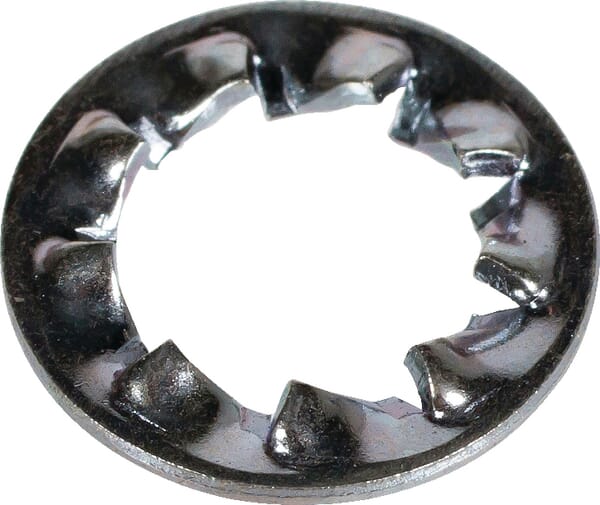

Kramp Serrated lock washer M12x20.5x1mm, Steel Zinc-plated DIN 6798 6798J12
£0.18 excl.
£0.21 incl.
In stock
Expected to ship on Friday 18 September
BPA000330475
Kramp O-ring 63x5mm 75 shore Viton OR635VP001
£7.42 excl.
£8.90 incl.
In stock
Expected to ship on Monday 21 September
BPA000225607
Kramp Brake rod AH10187
£37.90 excl.
£45.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000285955
Kramp High pressure hose M22 8mm 15m HD999015
£88.50 excl.
£106.20 incl.
In stock
Expected to ship on Friday 18 September
BPA000318612

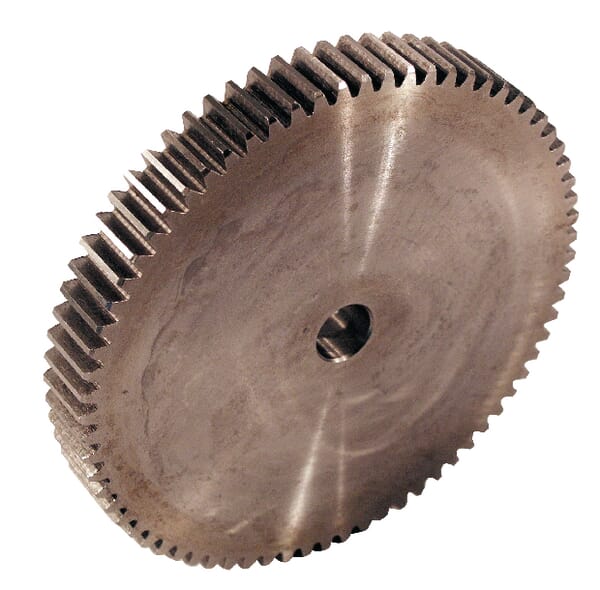

Kramp Spur gear module 2 - Z=72 MOD272
