£29.55
excl. VAT
£35.46 incl. VAT
£35.46
incl. VAT
£29.55 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 15 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 35 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 116 mm |
| PPitch diameter | 112 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607038171 |
|---|---|
| Unit of measure | EA |
| Weight | 1939 g |
| Dimensions | 115 × 115 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000039152
Kramp Plough bolt and nut M12x40 12.9 DIN608, round countersunk square neck 1240129VK
£0.72 excl.
£0.86 incl.
In stock
Expected to ship on Monday 21 September
BPA000335583
Kramp Slab Share RH PASC806N
£73.47 excl.
£88.16 incl.
In stock
Expected to ship on Monday 21 September
BPA000382792
Kramp V-belt 13x2000 Li VB132000KR
£8.65 excl.
£10.38 incl.
In stock
Expected to ship on Monday 21 September
BPA000283686

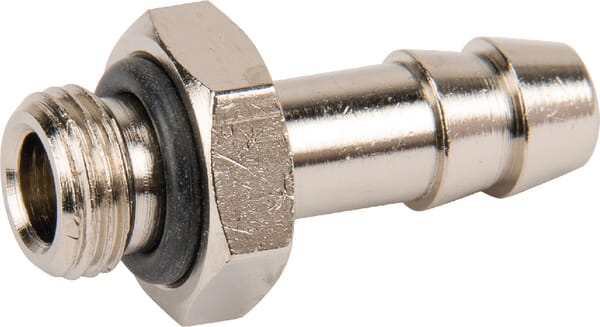

Kramp Hose fitting 8 mm x 1/8" HCMPOR818
