£24.83
excl. VAT
£29.80 incl. VAT
£29.80
incl. VAT
£24.83 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub width | 25 mm |
| JChamber diameter | 83 mm |
| KHub offset 1 | 3 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 116 mm |
| PPitch diameter | 112 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250183 |
|---|---|
| Unit of measure | EA |
| Weight | 1240 g |
| Dimensions | 112 × 112 × 28 mm |
| Dangerous goods | No |
You might also like
BPA000204099

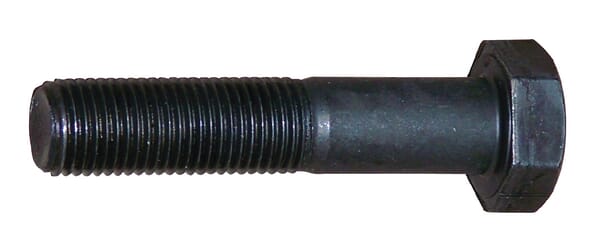

Kramp Hexagon head bolt DIN960 M16x1.50x65 steel 12.9 960161565129B
£1.49 excl.
£1.79 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000059567
Kramp Hex key 6mm 1809030060KR
£2.72 excl.
£3.26 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000286757

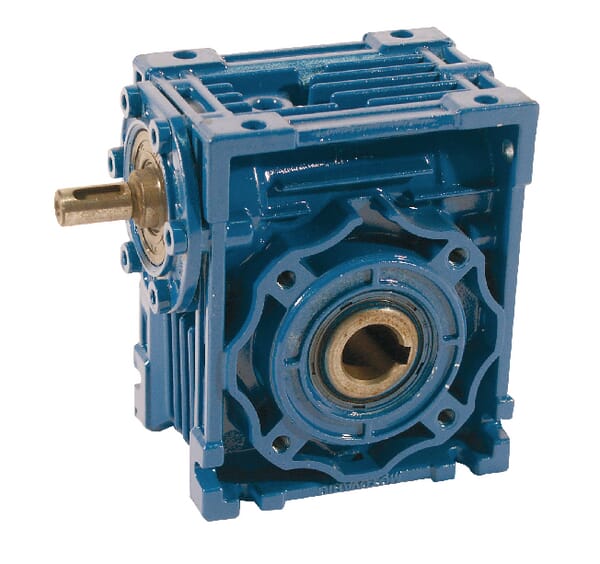

Kramp Worm gear reducer I = 30 GR07530
