£29.32
excl. VAT
£35.18 incl. VAT
£35.18
incl. VAT
£29.32 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 15 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 35 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 122 mm |
| PPitch diameter | 118 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1630 g |
| Dimensions | 136 × 136 × 41 mm |
| Dangerous goods | No |
You might also like
BPA000119678

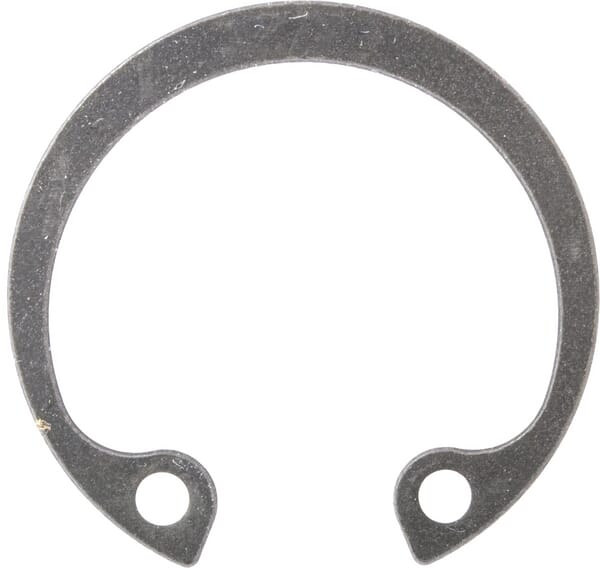

Kramp Circlip internal 22x1mm DIN472 Steel 47222
£0.09 excl.
£0.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000254011
Kramp Wing share 330mm CV008007N
£59.35 excl.
£71.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000321686
Kramp Bearing NWB09016
£14.68 excl.
£17.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000051778

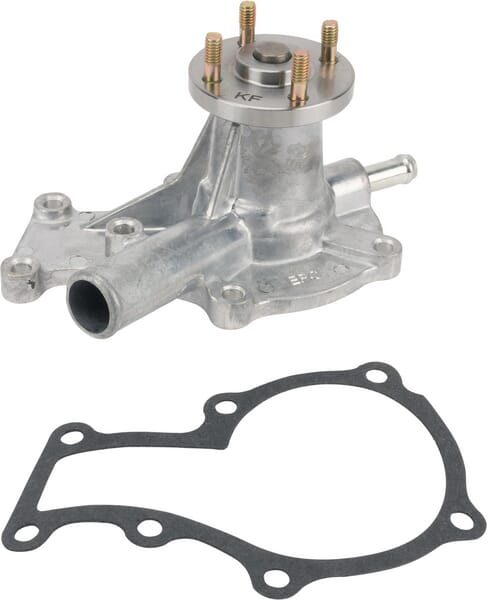

Kramp Water pump 1624173034KR
