£30.81
excl. VAT
£36.97 incl. VAT
£36.97
incl. VAT
£30.81 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 15 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 35 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 129 mm |
| PPitch diameter | 125 mm |
| Pulley type | 3 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8716106999767 |
|---|---|
| Unit of measure | EA |
| Weight | 1730 g |
| Dimensions | 130 × 130 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000376152
Kramp Trapezoidal threaded spindle 30x8x450mm steel TS30450
£65.55 excl.
£78.66 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000302076
Kramp Laptop backpack 17" Case Logic® KRA00904523002
£95.95 excl.
£115.14 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000188503
Kramp Pipe clamp galvanized 1" 82401
£3.98 excl.
£4.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000297201
Kramp Work gloves grey leather size 8/M Protect by KG0800208
£10.80 excl.
£12.96 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000248542
Kramp Seal kit CSKYAN172A4772900
£109.31 excl.
£131.17 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000284463

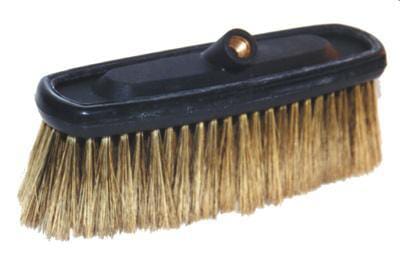

Kramp Wash brush HD340071100
