£26.97
excl. VAT
£32.36 incl. VAT
£32.36
incl. VAT
£26.97 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub width | 25 mm |
| JChamber diameter | 96 mm |
| KHub offset 1 | 3 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 129 mm |
| PPitch diameter | 125 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250305 |
|---|---|
| Unit of measure | EA |
| Weight | 1670 g |
| Dimensions | 130 × 130 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000270763
Kramp Guide shoe FGP010707
£9.33 excl.
£11.20 incl.
Backorder available
Usually ships within 3–8 weeks

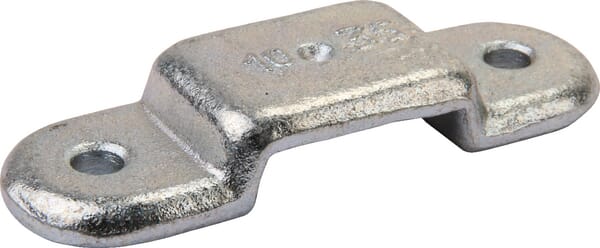

BPA000170185
Kramp Socket holder zinc-plated 778105KR
£3.71 excl.
£4.45 incl.
In stock
Expected to ship on Friday 18 September
BPA000187441
Kramp Spiral roll pin, standard duty 8x60mm ISO8750 8750860
£0.75 excl.
£0.90 incl.
In stock
Expected to ship on Friday 18 September

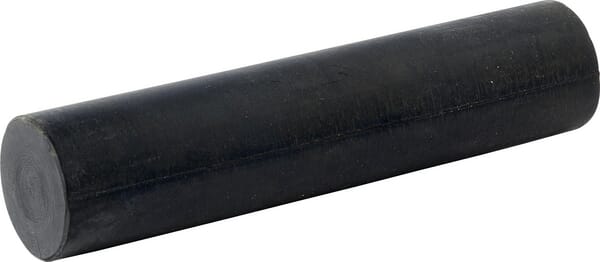

BPA000360705
Kramp Shock absorber 30x555 SHAB30555
£21.63 excl.
£25.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000202366
Kramp Hexagon nut DIN934 M20x2.50 steel Class 10 9342010B
£0.99 excl.
£1.19 incl.
In stock
Expected to ship on Friday 18 September

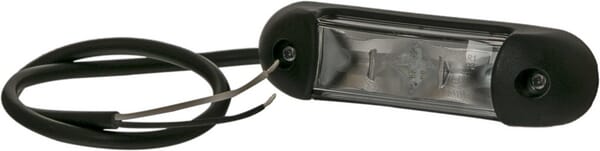

BPA000304469
