£30.22
excl. VAT
£36.26 incl. VAT
£36.26
incl. VAT
£30.22 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

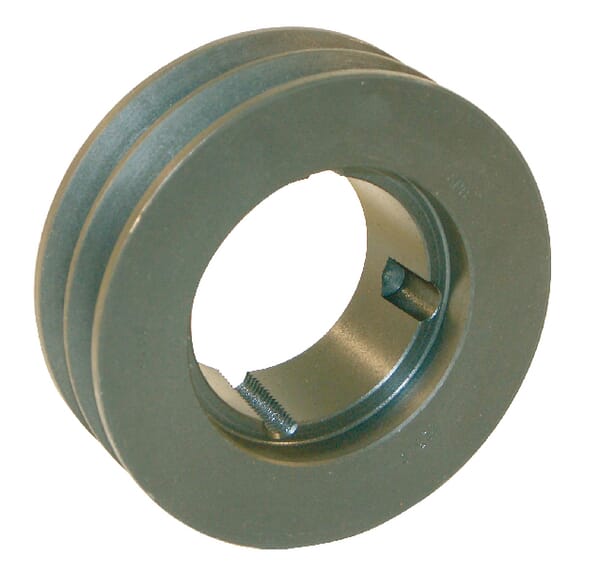

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub width | 25 mm |
| JChamber diameter | 103 mm |
| KHub offset 1 | 3 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 136 mm |
| PPitch diameter | 132 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250367 |
|---|---|
| Unit of measure | EA |
| Weight | 2097 g |
| Dimensions | 135 × 135 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000361450

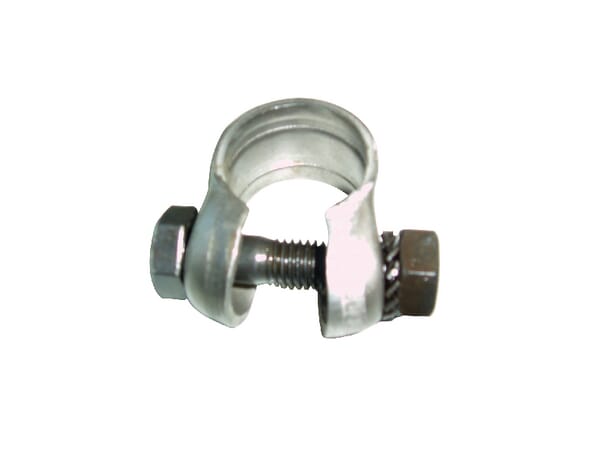

Kramp Tie rod clamp SHP903KR
£9.95 excl.
£11.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000324340
Kramp Tapered roller bearing NWB02483
£24.47 excl.
£29.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000271047

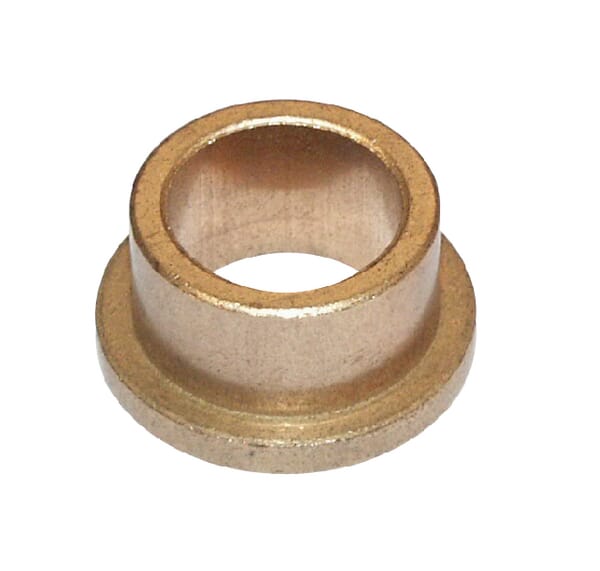

Kramp Bush 19.0x25.4x16.0mm FGP011994
£4.28 excl.
£5.14 incl.
In stock
Expected to ship on Monday 21 September
BPA000182391

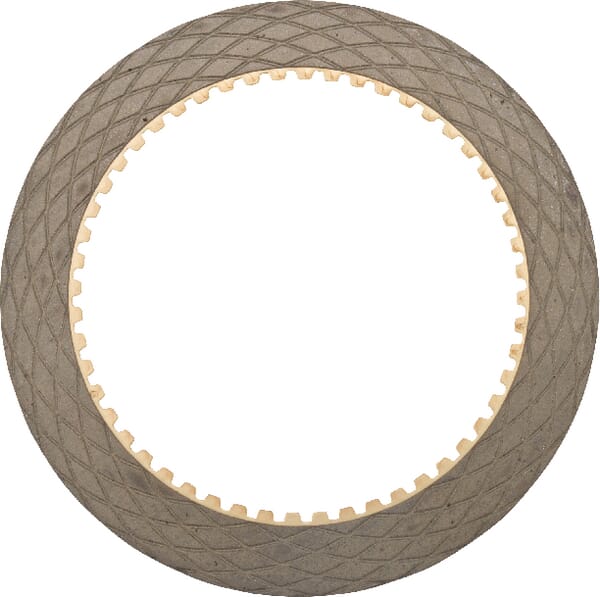

Kramp Friction disc suitable for New Holland 81870755KR
£8.95 excl.
£10.74 incl.
In stock
Expected to ship on Monday 21 September
BPA000299051
Kramp Hex. screw BK M4x10 10.9 blk ISO7380410109B
£0.16 excl.
£0.19 incl.
In stock
Expected to ship on Monday 21 September
BPA000305925

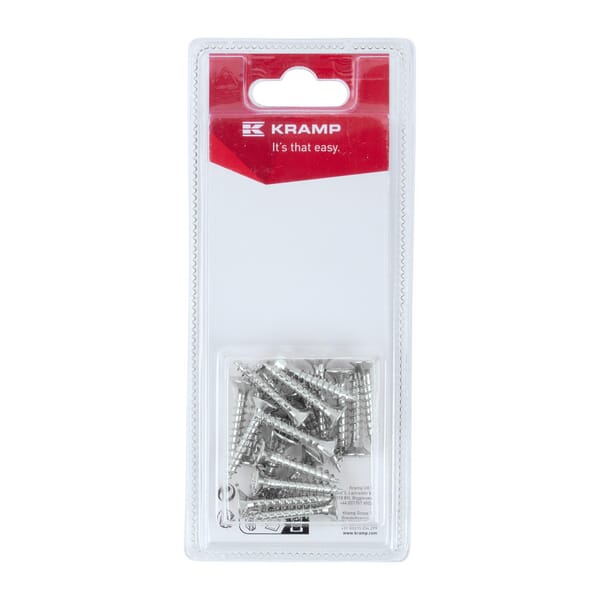

Kramp Chipboard Screw 5 x 30mm (20) KRSPS530P20B
