£45.82
excl. VAT
£54.98 incl. VAT
£54.98
incl. VAT
£45.82 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub diameter | 112 mm |
| Hub width | 32 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 4 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 154 mm |
| PPitch diameter | 150 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250497 |
|---|---|
| Unit of measure | EA |
| Weight | 2765 g |
| Dimensions | 155 × 155 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000375737
Kramp Cable tie 3.6x370mm, black, 100pcs TR0136370BLA
£3.83 excl.
£4.60 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000321609
Kramp Bearing NWB08938
£437.11 excl.
£524.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000173816

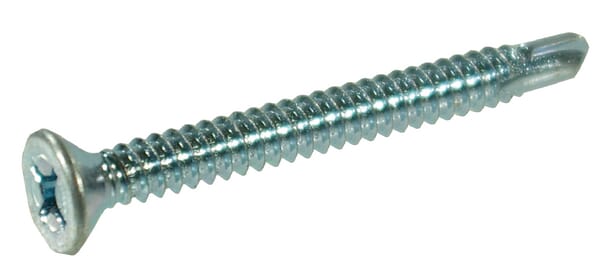

Kramp Self tapping screw 4.8x25mm PH2 countersunk, DIN 7504 7504P4825P200
£0.06 excl.
£0.08 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000225630

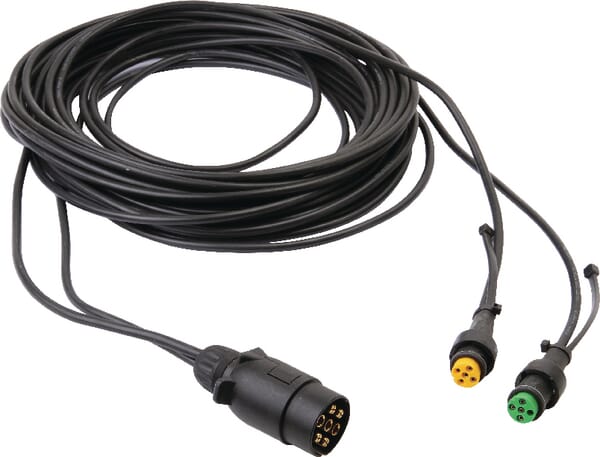

Kramp Wiring harness AH10767
