£47.18
excl. VAT
£56.62 incl. VAT
£56.62
incl. VAT
£47.18 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub diameter | 112 mm |
| Hub width | 32 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 4 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 164 mm |
| PPitch diameter | 160 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250565 |
|---|---|
| Unit of measure | EA |
| Weight | 3177 g |
| Dimensions | 165 × 165 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000306001
Kramp Quick release coupling female 3/8" (1) KRVF038GASFP01B
£22.58 excl.
£27.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000306019

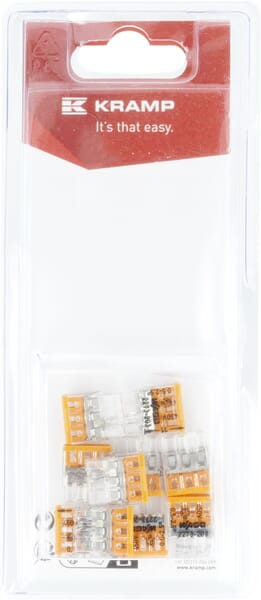

Kramp Cable Joiner Wago 3 inlet (10) KRWAG273243P10B
£3.28 excl.
£3.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000248412

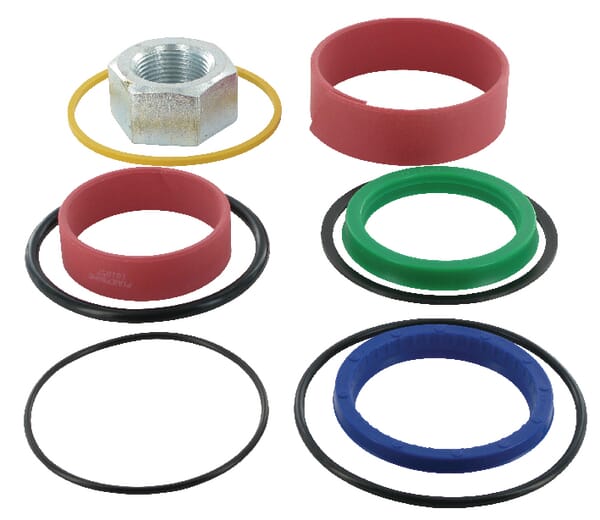

Kramp Seal kit CSKTAK1900051999
£32.05 excl.
£38.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272037

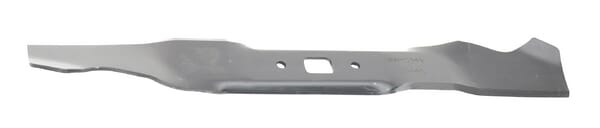

Kramp Blade L: 457mm, round hole: diameter 17.8 suitable for MTD by FGP406529
£15.09 excl.
£18.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000227840

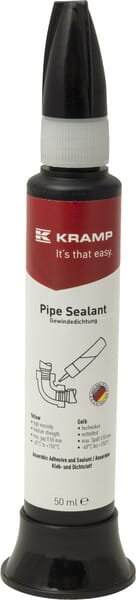

Kramp Pipe sealant 50ml AN03050DEUKKR
£28.69 excl.
£34.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000309282

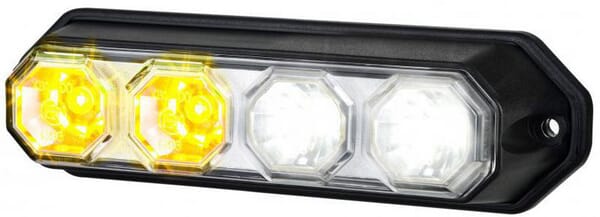

Kramp Multifunction front light LED, rectangular, 12-24V, white, 147x37x42mm, 4 LED's, LA80031
