£53.30
excl. VAT
£63.96 incl. VAT
£63.96
incl. VAT
£53.30 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 20 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 40 mm |
| Lock type | n/a |

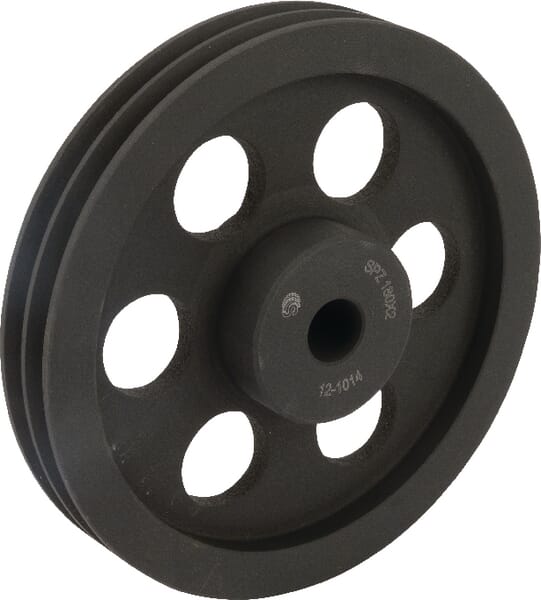

| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 184 mm |
| PPitch diameter | 180 mm |
| Pulley type | 5 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607082457 |
|---|---|
| Unit of measure | EA |
| Weight | 2914 g |
| Dimensions | 185 × 185 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000200294

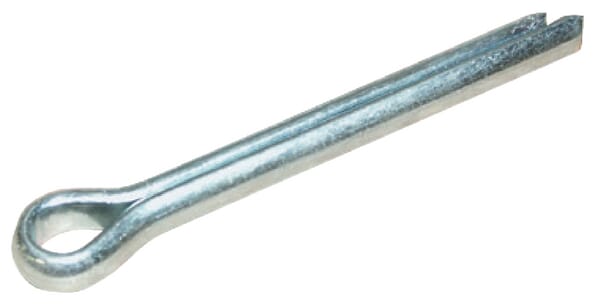

Kramp Split pin 2.5x32 zinc plated 942532
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Monday 21 September
BPA000321929
Kramp Bearing NWB09282
£45.47 excl.
£54.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357910
Kramp Sprocket Simplex 10 teeth 3/4" chain 12 B-1 SE3410
£3.51 excl.
£4.21 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000004014

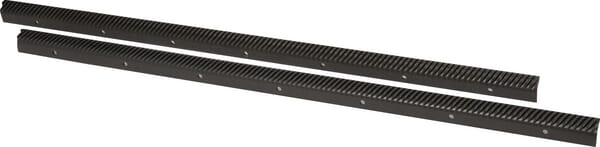

Kramp Beater bar 2 x left 0001817430KR
