£57.99
excl. VAT
£69.59 incl. VAT
£69.59
incl. VAT
£57.99 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 20 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 40 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 204 mm |
| PPitch diameter | 200 mm |
| Pulley type | 5 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607008884 |
|---|---|
| Unit of measure | EA |
| Weight | 2830 g |
| Dimensions | 203 × 203 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000174766

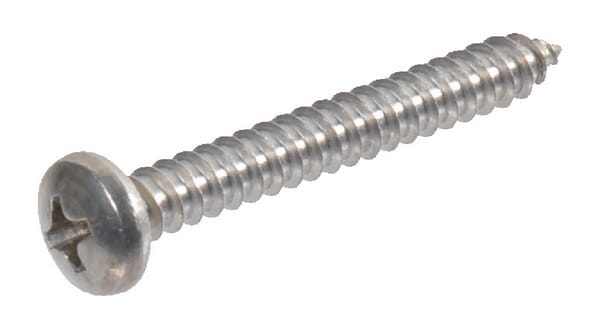

Kramp Self tapping screw 3.9x16mm PH2 pan head, stainless steel, DIN 7981C 7981C3916RVSP100
