£59.01
excl. VAT
£70.81 incl. VAT
£70.81
incl. VAT
£59.01 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 20 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 40 mm |
| Lock type | n/a |

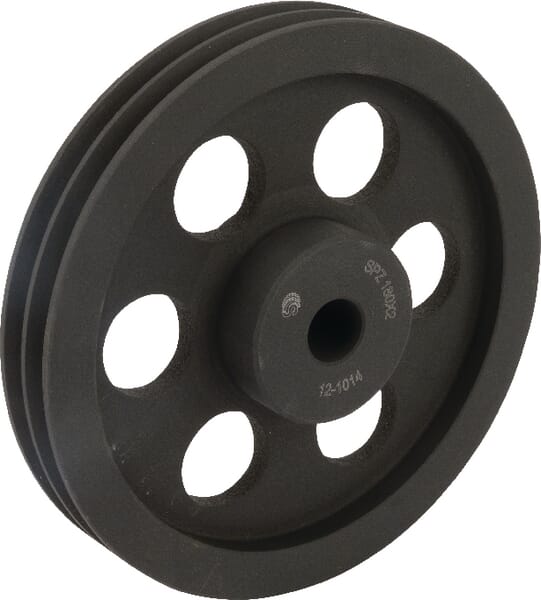

| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 228 mm |
| PPitch diameter | 224 mm |
| Pulley type | 5 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3510 g |
| Dimensions | 230 × 230 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000304778
Kramp Boxer shorts Bamboo 3-pack M KW131044050
£26.01 excl.
£31.21 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000360833

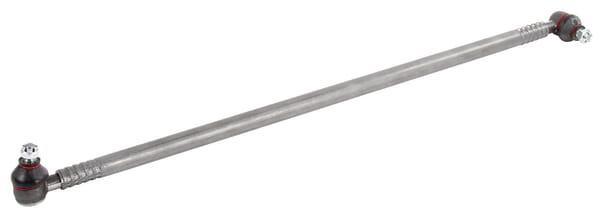

Kramp Tie rod SHP100KR
£87.66 excl.
£105.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000179015
Kramp Self tapping screw 4.2x38mm PZ2 countersunk, stainless steel, DIN 7983C 7983C4238RVSP100
£0.09 excl.
£0.11 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000061799

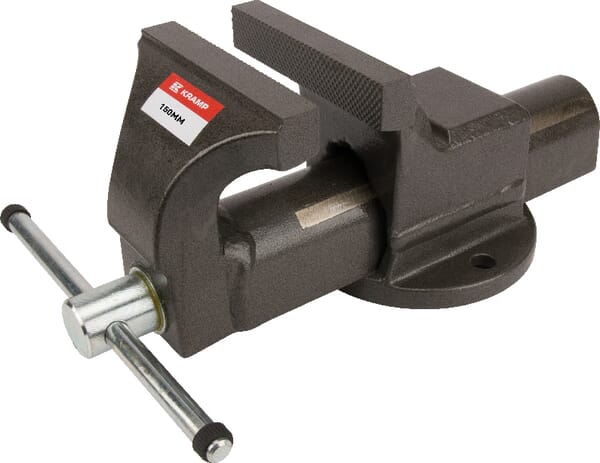

Kramp Bench vice 150mm 1900110150KR
£232.87 excl.
£279.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000254448

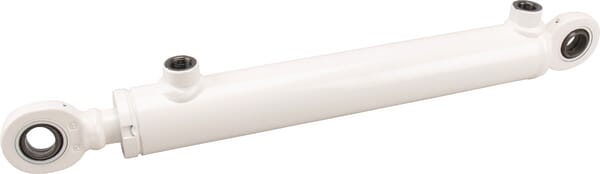

Kramp Cylinder D20-32-250 GK-series D2032250GK
£137.18 excl.
£164.62 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000328995

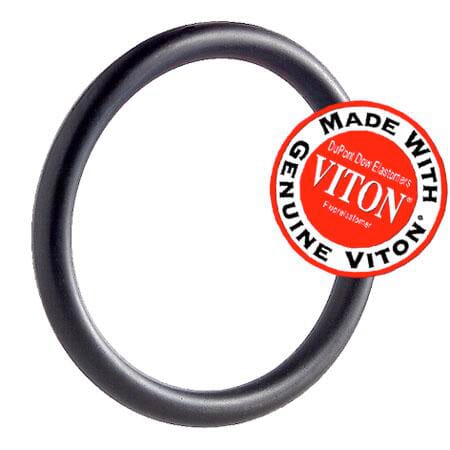

Kramp O-ring 160x6mm 75 shore Viton OR1606VP001
