£73.83
excl. VAT
£88.60 incl. VAT
£88.60
incl. VAT
£73.83 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |

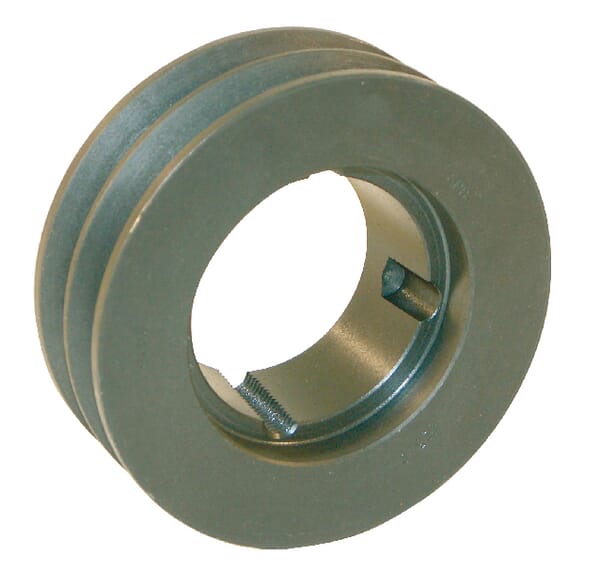

| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| ECore disc thickness | 15 |
| FWorking width | 28 mm |
| Hub diameter | 112 mm |
| Hub width | 32 mm |
| JChamber diameter | 195 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 4 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 228 mm |
| PPitch diameter | 224 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250893 |
|---|---|
| Unit of measure | EA |
| Weight | 4186 g |
| Dimensions | 224 × 224 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000316493

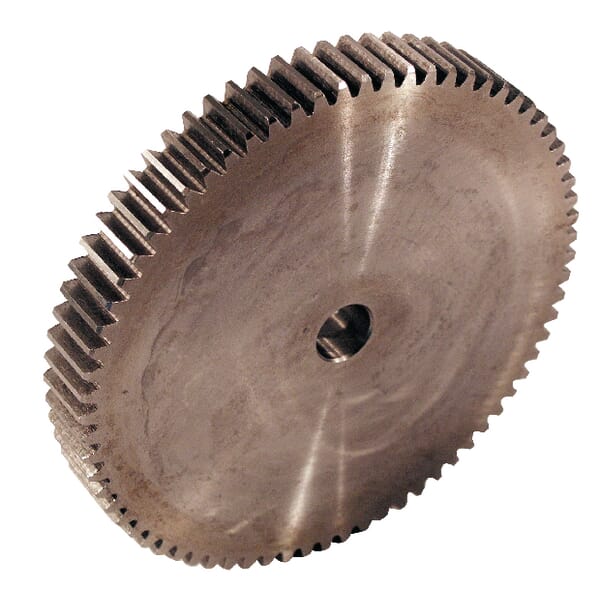

Kramp Spur gear module 2 - Z=110 MOD2110
£73.01 excl.
£87.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000319628
Kramp Bearing NWB06796
£119.53 excl.
£143.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000364192
Kramp Starter 12V, 1.6kW, 11-teeth, CW STA2617254
£110.10 excl.
£132.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000320528
Kramp Bearing NWB07726
£88.45 excl.
£106.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000370182

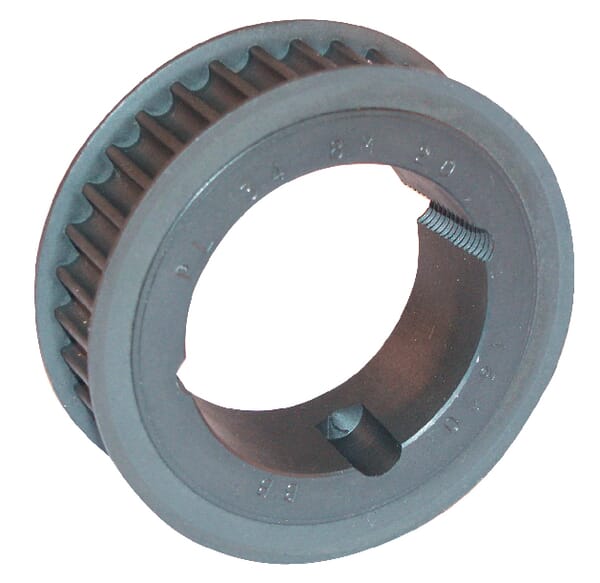

Kramp Timing pulley Taperlock 1108 TB248M20
