Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub diameter | 112 mm |
| Hub width | 32 mm |
| JChamber diameter | 221 mm |
| KHub offset 1 | 2 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 2 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 254 mm |
| PPitch diameter | 250 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250961 |
|---|---|
| Unit of measure | EA |
| Weight | 4419 g |
| Dimensions | 255 × 255 × 32 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000357980

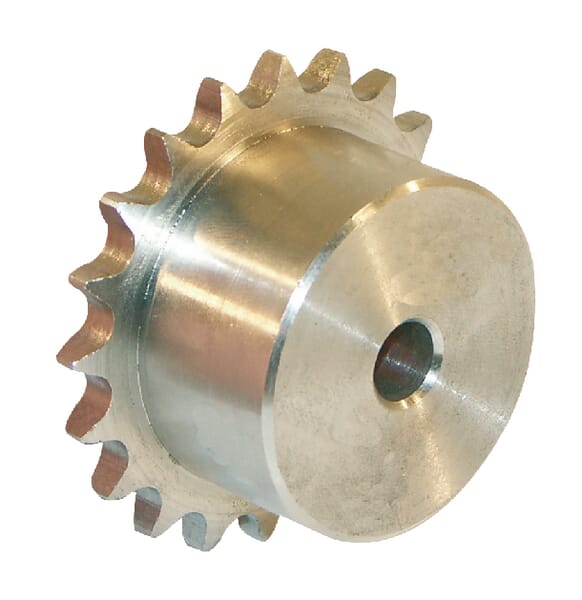

Kramp Sprocket Simplex 22 teeth 3/4" chain 12 B-1 Stainless steel 304 SE3422RVS
£151.13 excl.
£181.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000342379
Kramp Platewheel Simplex 42 teeth 3/8" chain 06 B-1 PW3842
£5.53 excl.
£6.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000206605

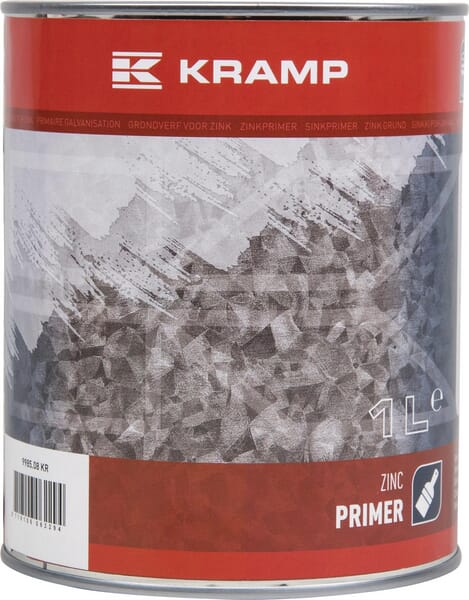

Kramp Zinc primer 1L 998508KR
