£97.48
excl. VAT
£116.98 incl. VAT
£116.98
incl. VAT
£97.48 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

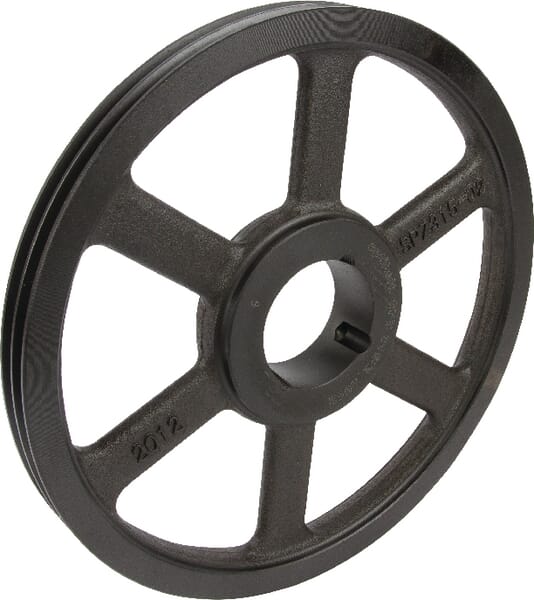

Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub diameter | 112 mm |
| Hub width | 32 mm |
| JChamber diameter | 286 mm |
| KHub offset 1 | 2 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 2 mm |
| Number of grooves | 2 |
| OPulley outside diameter | 319 mm |
| PPitch diameter | 315 mm |
| Pulley type | 4 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486251104 |
|---|---|
| Unit of measure | EA |
| Weight | 5429 g |
| Dimensions | 320 × 320 × 33 mm |
| Dangerous goods | No |
You might also like
BPA000375726

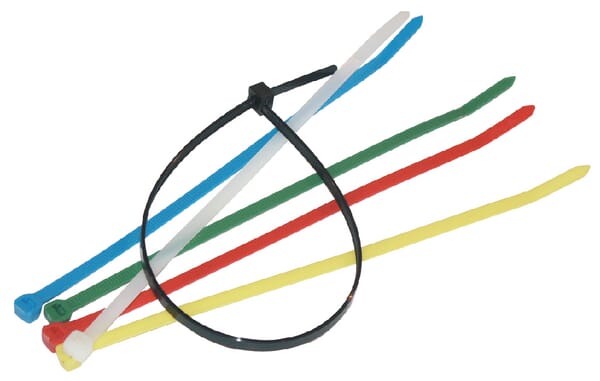

Kramp Cable tie 3.6x200mm, green, 100pcs TR0136200GRE
£2.13 excl.
£2.56 incl.
In stock
Expected to ship on Monday 21 September
BPA000319616
Kramp Bearing NWB06775
£26.28 excl.
£31.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000331487
Kramp O-ring 9.92x2.62 75 shore Viton 10x OR992262VP010
£9.90 excl.
£11.88 incl.
In stock
Expected to ship on Monday 21 September
BPA000199859
Kramp Hexagon head bolt DIN931 M18x120 steel zinc-plated 10.9 93118120109
£5.05 excl.
£6.06 incl.
In stock
Expected to ship on Monday 21 September
BPA000271597

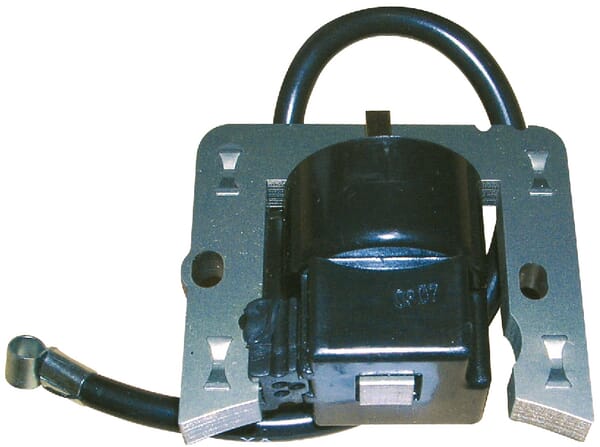

Kramp Ignition coil, FGP014152
£41.25 excl.
£49.50 incl.
In stock
Expected to ship on Monday 21 September
BPA000174101

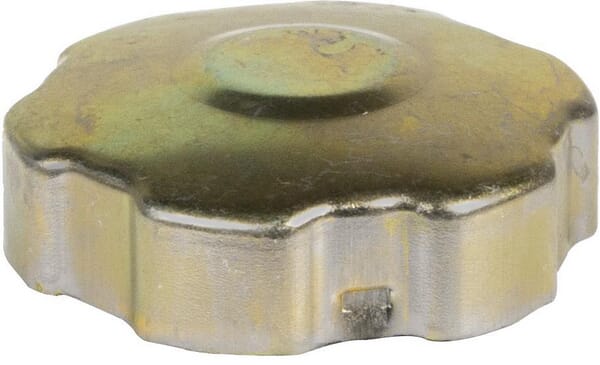

Kramp Fuel cap 7920001773N
