£12.19
excl. VAT
£14.63 incl. VAT
£14.63
incl. VAT
£12.19 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 28 mm |
| Hub width | 22 mm |
| JChamber diameter | 42 mm |
| KHub offset 1 | 6 mm |
| Lock type | 1108 |
| Material | Cast iron |
| Max. bore diameter | 28 mm |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 71 mm |
| PPitch diameter | 67 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486249781 |
|---|---|
| Unit of measure | EA |
| Weight | 362 g |
| Dimensions | 70 × 70 × 28 mm |
| Dangerous goods | No |
You might also like
BPA000404489
Kramp Pin with handle 38x192mm Z538189KR
£11.12 excl.
£13.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000352431

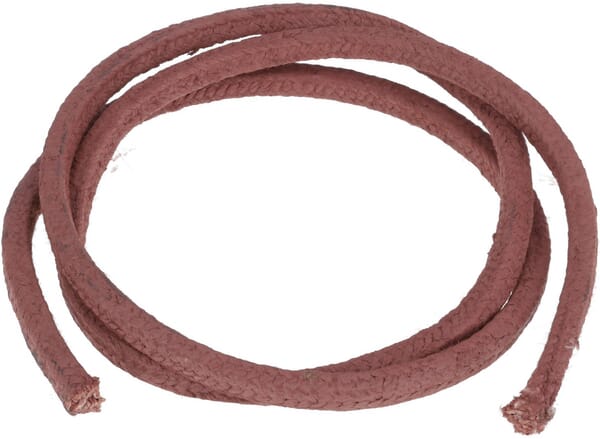

Kramp Gland packing 8x8 SBP080RAMEH
£15.34 excl.
£18.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000209408

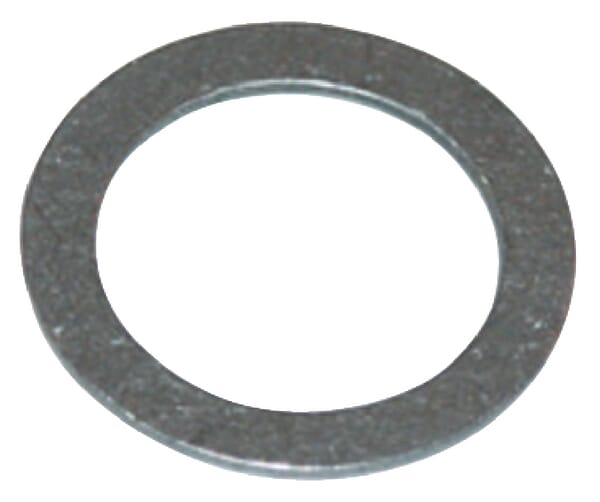

Kramp Shim diameter 19x26x0.5mm DIN 988 988192605P010
£0.24 excl.
£0.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000174646

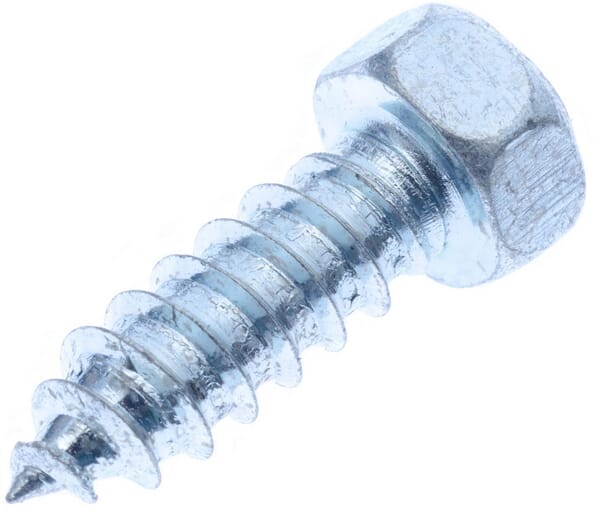

Kramp Self tapping screw 5.5x16mm, 8mm hex head, DIN 7976C 7976C5516P200
