£16.75
excl. VAT
£20.10 incl. VAT
£20.10
incl. VAT
£16.75 excl. VAT
In stock
Expected to ship on Tuesday 22 September
About this product
A cast-iron V-belt pulley with 2 grooves, 75 mm outside diameter and 71 mm pitch diameter, supplied as a single piece. The pulley is designed for SPZ, Z, and AVX10 profile V-belts with 10 mm width. It features a 10 mm standard bore diameter (maximum expandable to 32 mm), 55 mm hub diameter, and 35 mm hub width. The pulley is rated for a maximum belt speed of 30 m/s and is suitable for use in construction machines, forestry machinery, agricultural machinery, and mechanical engineering applications. Hub bore, keyway, and tapped hole are available as optional modifications. The pulley weighs 770 g and measures 75 mm length by 75 mm width by 35 mm height. EAN 8719607000505.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 32 mm |
| Hub diameter | 55 mm |
| LHub width | 35 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 75 mm |
| PPitch diameter | 71 mm |

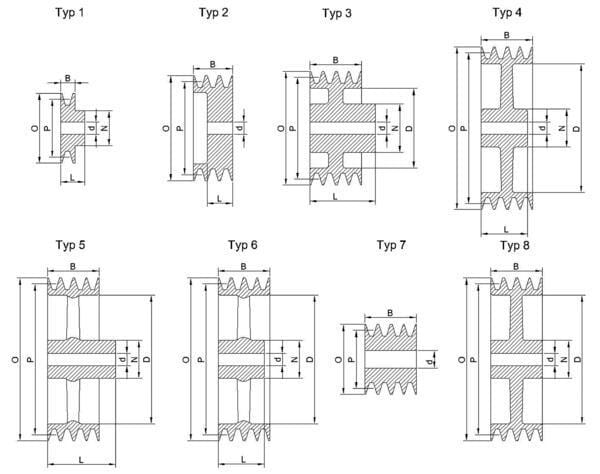

| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 8719607000505 |
|---|---|
| Unit of measure | EA |
| Weight | 770 g |
| Dimensions | 75 × 75 × 35 mm |
| Dangerous goods | No |
