£19.37
excl. VAT
£23.24 incl. VAT
£23.24
incl. VAT
£19.37 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 28 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 36 mm |
| Hub diameter | 60 mm |
| LHub width | 35 mm |
| Lock type | n/a |
| Long description | Pulleys standard profile SPZ - 2 grooves |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 2 |
| OPulley outside diameter | 89 mm |
| PPitch diameter | 85 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1174 g |
| Dimensions | 90 × 90 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000329829
Kramp O-ring 45x2mm 90 shore 10x OR45290P010
£8.57 excl.
£10.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000202375
Kramp Hexagon nut DIN934 M20x2.50 brass zinc-plated 93420MS
£4.17 excl.
£5.00 incl.
In stock
Expected to ship on Friday 18 September
BPA000098391
Kramp Oil seal 35x80x10mm type:CC DIN 3760 1x 358010CCP001
£2.60 excl.
£3.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000309846

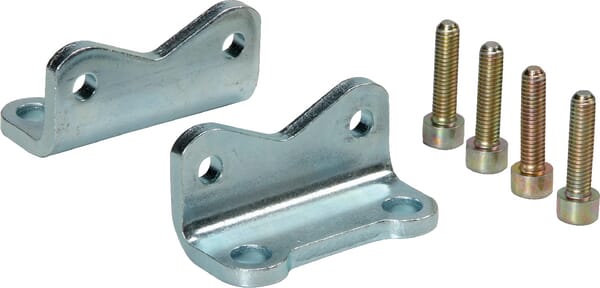

Kramp Foot mounting LB40PN
£13.47 excl.
£16.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000271631
Kramp Chainsaw chain file holder FGP014380
£22.08 excl.
£26.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000078834
Kramp V-belt pulley 1 groove Z or SPZ diameter 284mm for taperlockbush 2012 280Z1TL
£64.68 excl.
£77.62 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000093226
FAG Tapered roller bearing 40x80x32mm INA/FAG 33208A
£37.13 excl.
£44.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000203179
Kramp Hexagon head bolt DIN933 M12x140 steel 10.9 93312140109B
£1.22 excl.
£1.46 incl.
In stock
Expected to ship on Friday 18 September
BPA000405126
GLT/LHG Bearing bush 16x20x25mm ZB162025SINT
£4.36 excl.
£5.23 incl.
In stock
Expected to ship on Monday 21 September
BPA000203689
Kramp Hexagon head bolt DIN933 M24x55 steel 12.9 9332455129B
£3.94 excl.
£4.73 incl.
In stock
Expected to ship on Friday 18 September
BPA000179433
Kramp Countersunk head screw DIN7991 M24x160 steel 10.9 799124160109B
£18.34 excl.
£22.01 incl.
In stock
Expected to ship on Friday 18 September
BPA000156537
Kramp Oil seal 65x75x8mm type:BD DIN 3760 1x 65758BDP001
£13.13 excl.
£15.76 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000096204
Walterscheid Yoke for clutch F5/1L, W2500/P500 363127
£374.56 excl.
£449.47 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000389031

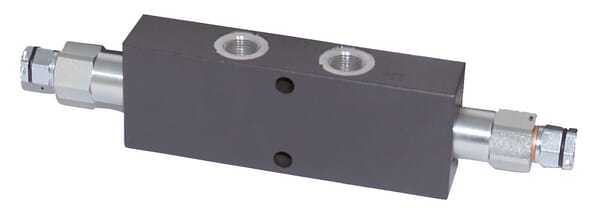

Walvoil Counter balance N1116 1/2 G5P4 VODL10003ST
