£46.18
excl. VAT
£55.42 incl. VAT
£55.42
incl. VAT
£46.18 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 50 mm |
| Hub width | 32 mm |
| JChamber diameter | 98 mm |
| Lock type | 2012 |
| Material | Cast iron |
| Max. bore diameter | 50 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 18 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 137.5 mm |
| PPitch diameter | 132 mm |
| Pulley type | 2 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245394 |
|---|---|
| Unit of measure | EA |
| Weight | 2528 g |
| Dimensions | 138 × 138 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000095673

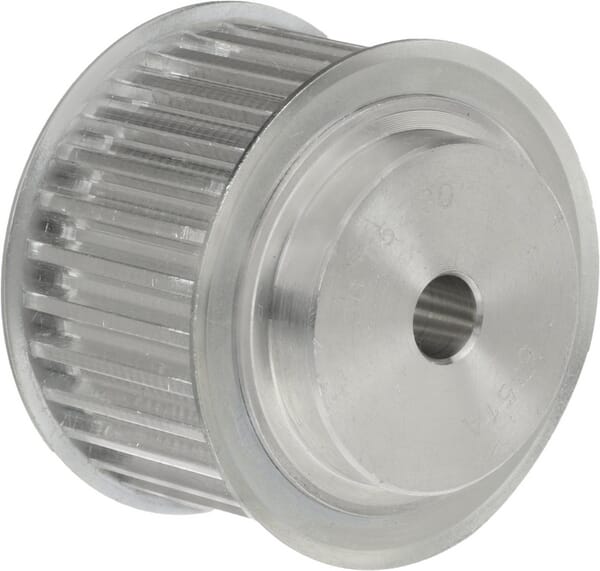

Kramp Timing pulley Type -T5 30Z 36T5302
£17.86 excl.
£21.43 incl.
In stock
Expected to ship on Thursday 24 September
BPA000099087
Kramp System knife blade, suitable for Schumacher 3800420100046
£0.91 excl.
£1.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000200031
Kramp Stud bolt DIN939 M12x130 steel 8.8 93912130B
£4.40 excl.
£5.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250617
Kramp Compression spring 2.5x16x500 DV2516500
£4.75 excl.
£5.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000364327

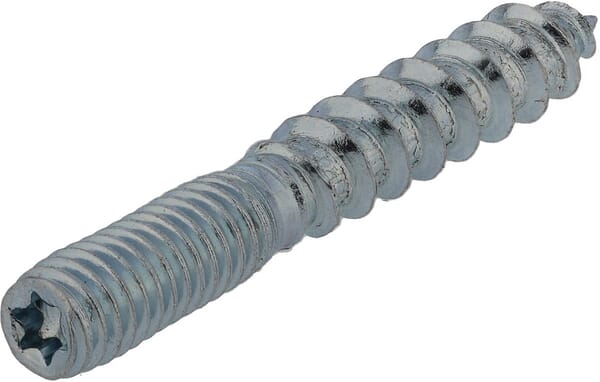

Kramp Dowel screw M6 / 5x120mm TX25 round head, STO6120
£0.39 excl.
£0.47 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000361321

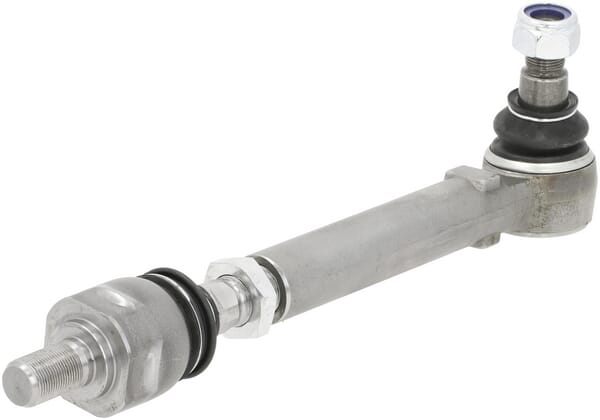

Kramp Tie rod SHP687KR
