£58.02
excl. VAT
£69.62 incl. VAT
£69.62
incl. VAT
£58.02 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 50 mm |
| Hub width | 45 mm |
| JChamber diameter | 116 mm |
| KHub offset 1 | 5 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 155.5 mm |
| PPitch diameter | 150 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245493 |
|---|---|
| Unit of measure | EA |
| Weight | 3408 g |
| Dimensions | 150 × 150 × 48 mm |
| Dangerous goods | No |
You might also like
BPA000364709
Kramp Wood screw 4x20mm PZ2 pan head, SPL420P200
£0.04 excl.
£0.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000260936

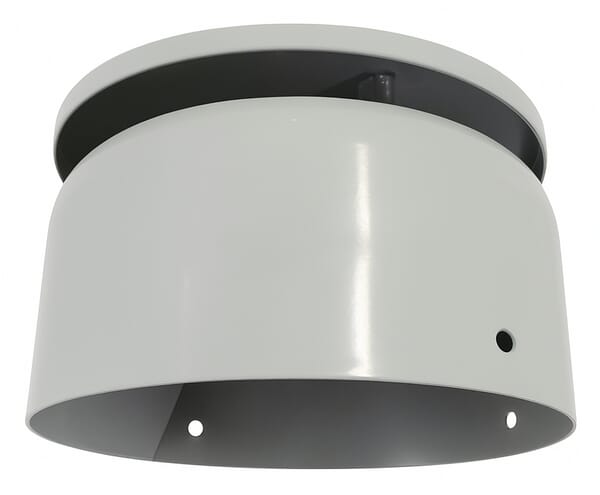

Kramp Fan cover with rain cap 112AL EM911211WA3
£25.57 excl.
£30.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000302089

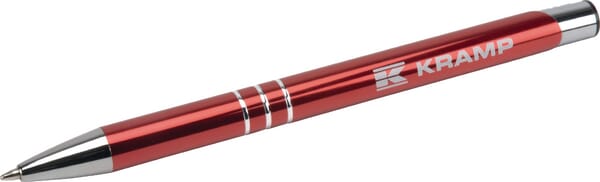

Kramp pen, red KRA450600003
£2.67 excl.
£3.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000327042

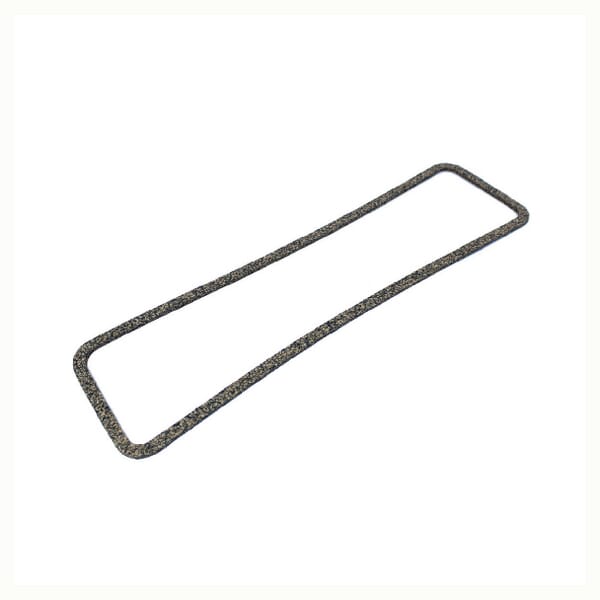

Kramp Gasket NWS00642
£31.71 excl.
£38.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000330861
Kramp O-ring 75x5mm 70 shore 10x OR755P010
£6.71 excl.
£8.05 incl.
In stock
Expected to ship on Monday 21 September
BPA000273004

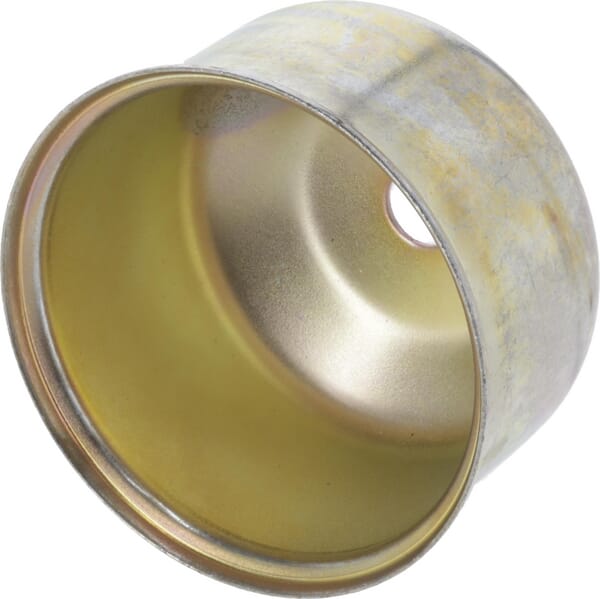

Kramp Float bowl suitable for Briggs & Stratton 495933 FGP456482
